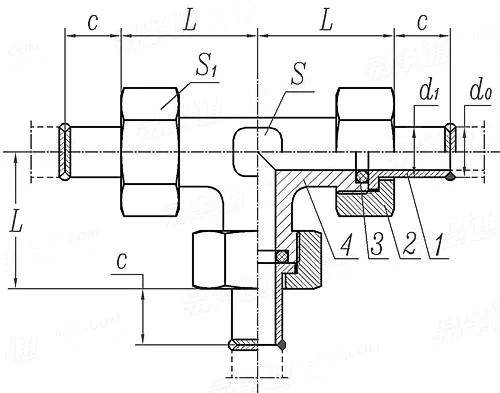

焊接式三通管接頭 JB 972 - 1977

選擇規格尺寸點擊↓

尺寸單位: mm

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

規格

d₀	管子外徑
公稱直徑
d₁
L
c
s	扳手尺寸
s₁	扳手尺寸
1 ^①
2 ^②
3 ^③
4 ^④

6	10	14	18	22	28	34	42	50
3	6	8	10	15	20	25	32	40
7.5	11	16	19	22	28	34	42	50
24	28.5	35	39	43	48	57	64	74
14	16.5	19	21	21	24	26	28	30
10	14	19	24	27	32	41	50	60
14	19	27	32	36	41	50	60	70
6	10	14	18	22	28	34	42	50
M12*1.25	M16*1.5	M22*1.5	M27*1.5	M30*1.5	M36*2	M42*2	M52*2	M60*2
8*1.9	11*1.9	16*2.4	20*2.4	24*2.4	30*3.1	35*3.1	40*3.1	45*3.1
6	10	14	18	22	28	34	42	50

①,接管（JB 2099-77）材料：20#
②,螺母（JB 981-77）材料：35#
③,O形圈（GB 1235-76）材料：橡膠 I-4
④,接頭體（JB 990-77）材料：35#
