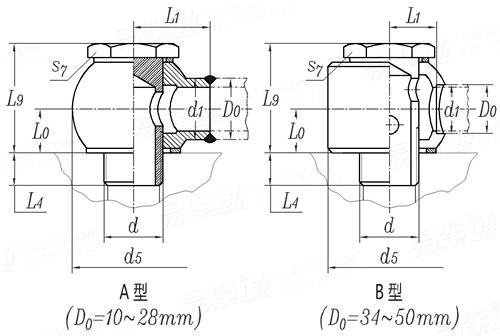

焊接式鉸接管接頭 JB /ZQ 4782 - 2006

選擇規格尺寸點擊↓

尺寸單位: mm

機械行業JB /ZQ4782 - 2006 JB4782 4782JB 焊接式鉸接管接頭

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱通徑

D₀	管外徑
d
d₁
d₅
L₄
L₉
L₀
L₁
s₇
單重≈kg

10	14	18	22	28	34	42	50
M10×1	M14×1.5	M18×1.5	M22×1.5	M27×2	M33×2	M42×2	M48×2
11	16	19	22	28	34	42	50
22	28	36	46	56	64	78	90
8	10	12	14	15	16	17	19
23	29	34	43	50	66	82	94
8.5	11	13	17	20	27	34	38
15	20	25	30	35	24	30	33
17	19	24	30	36	41	55	60
0.059	0.103	0.19	0.342	0.66	1.32	2.14	3.33
