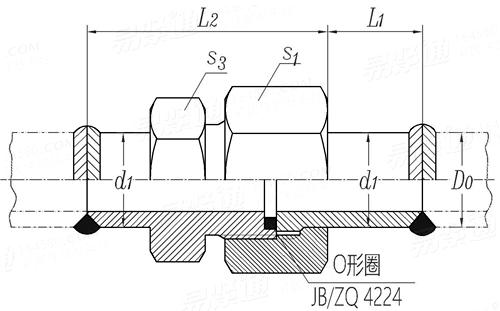

焊接式直通管接頭 JB /ZQ 4775 - 2006

選擇規格尺寸點擊↓

尺寸單位: mm

機械行業JB /ZQ4775 - 2006 JB4775 4775JB 焊接式直通管接頭

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱通徑

D₀	管外徑
d₁
L₁
L₂
s₁
s₃
O形圈 (JB/ZQ 4224)
單重≈kg

6	10	14	18	22	28	34	42	50
7.5	11	16	19	22	28	34	42	50
14	16.5	19	21	21	24	26	28	30
30	32.5	41	45	48	53	62	68	76
14	19	27	32	36	41	50	60	70
14	17	22	27	30	36	46	55	65
8×1.9	11×1.9	16×2.4	20×2.4	24×2.4	30×3.1	35×3.1	40×3.1	45×3.1
0.028	0.055	0.15	0.19	0.24	0.37	0.63	1.05	1.57
