焊接式直角管接頭 JB 971 - 1977

選擇規格尺寸點擊↓

尺寸單位: mm

掃一掃分享

公差

管外徑

公稱通徑 DN
d₁
d₂
h
L₁
L
s
s₁

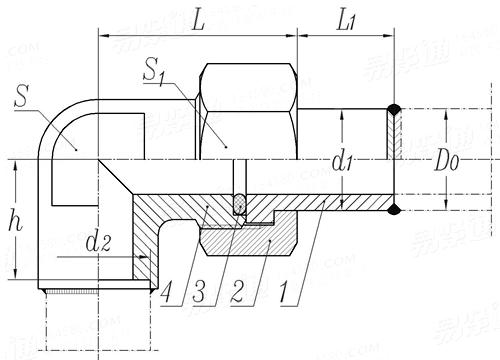

1—接管JB2099
2—螺母JB981
3—O形圈GB1235
4—接頭體JB989

3	6	8	10	15	20	25	32	40
7.5	11	16	19	22	28	34	42	50
6.5	10.5	14.5	18.5	22.5	28.5	34.5	42.5	50.5
12	15	20	22	26	30	36	40	48
14	16.5	19	21	21	24	26	28	30
24	28.5	35	39	43	48	57	64	74
10	14	19	24	27	32	41	50	60
14	19	27	32	36	41	50	60	70
6	10	14	18	22	28	34	42	50
M12×1.25	M16×1.5	M22×1.5	M27×1.5	M30×1.5	M36×2	M42×2	M52×2	M60×2
8×1.9	11×1.9	16×2.4	20×2.4	24×2.4	30×3.1	35×3.1	40×3.1	45×3.1
6	10	14	18	22	28	34	42	50

①,技術條件按JB1003-77的規定。應用無縫鋼管的材料為15、20鋼，精度為普通級。

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
