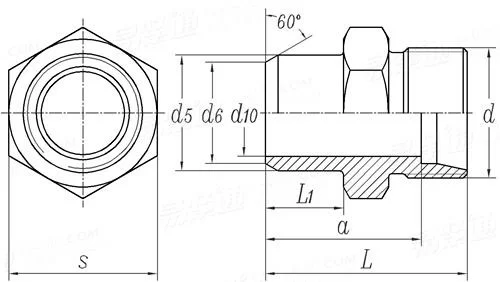

焊接直通管接頭【表13】 JIS B 2351-1 (WDS) - 2000

選擇規格尺寸點擊↓

尺寸單位: mm

日标JIS B2351-1 (WDS) - 2000 JIS2351-1 235 焊接直通管接頭【表13】

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積毛坯直徑

管外徑

類型
d₅
d₆
d₁₀
L₁	±0.2
L	±0.3
s
a
d

L	L	L	L	L	L	L	L	L	L
10	12	14	16	19	22	27	32	40	46
6	8	10	12	15	18	22	28	35	42
4	6	8	10	12	15	19	24	30	36
7	8	8	8	10	10	12	12	14	16
21	23	25	25	29	31	36	38	43	46
12	14	17	19	22	27	32	41	46	55
14	16	18	18	22	23.5	28.5	30.5	32.5	35
M12×1.5	M14×1.5	M16×1.5	M18×1.5	M22×1.5	M26×1.5	M30×2	M36×2	M45×2	M52×2

管外徑

類型
d₅
d₆
d₁₀
L₁	±0.2
L	±0.3
s
a
d

S	S	S	S	S	S	S	S	S
11	13	15	17	21	26	31	36	44
6	8	10	12	16	20	24	29	36
4	5	7	8	12	16	20	25	32
7	8	8	10	10	12	12	14	16
26	28	30	32	35	40	44	49	54
14	17	19	22	27	32	41	46	55
19	21	22.5	24.5	26.5	29.5	32	35.5	38
M14×1.5	M16×1.5	M18×1.5	M20×1.5	M24×1.5	M30×2	M36×2	M42×2	M52×2

采用标準

ISO 8434-1 (WDS) - 2018

卡套式焊接直通管接頭

JIS B 2351-1 - 2000

24度錐形端頭和卡套【表3】

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
