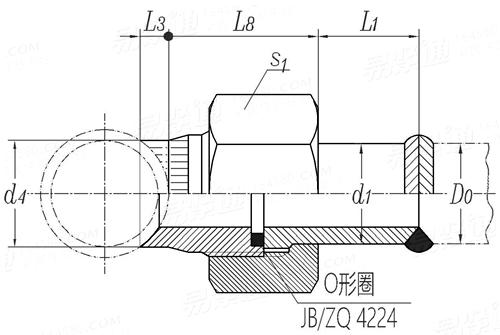

焊接式分管管接頭 JB /ZQ 4781 - 2006

選擇規格尺寸點擊↓

尺寸單位: mm

機械行業JB /ZQ4781 - 2006 JB4781 4781JB 焊接式分管管接頭

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱通徑

D₀	管外徑
d₁
d₄	公差（H12/h12）
L₁
L₃
L₈
s₁
O形圈 (JB/ZQ 4224)
單重≈kg

6	10	14	18	22	28	34	42	50
7.5	11	16	19	22	28	34	42	50
7	11	16	19	22	28	34	42	50
14	16.5	19	21	21	24	26	28	30
3	4	5	7	8	9	10	12	15
20	21.5	27	29	30	32	37	39	43
14	19	27	32	36	41	50	60	70
8×1.9	11×1.9	16×2.4	20×2.4	24×2.4	30×3.1	35×3.1	40×3.1	45×3.1
0.021	0.046	0.12	0.16	0.21	0.28	0.47	0.67	1.05
