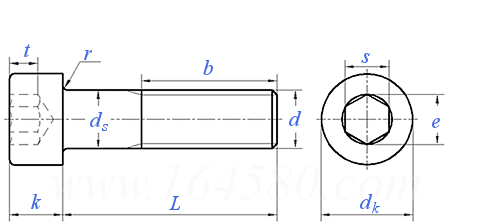

内六角圓柱頭螺釘 JIS B 1176 - 1988

選擇規格尺寸點擊↓

M1.6

M2.5

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

(M45)

M48

(M52)

括号内尺寸為非優選

尺寸單位: mm

日标JIS B1176 - 1988 JIS1176 1176JIS 内六角圓柱頭螺釘

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

螺紋尺寸
d

M1.6

M2.5

M10

M12

(M14)

M16

(M18)

P	螺距
b	參考
d_k	最大值	平頭
		滾花頭
	最小值
d_s	最大值
	最小值
k	最大值
	最小值
s ^①	公稱
	最小值
	最大值	1 Column
		2 Column
t	最小值

0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5
15	16	17	18	20	22	24	28	32	36	40	44	48
3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27
3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27	21.33	24.33	27.33
2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.67
1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.73
1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.57
1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14
1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.032
1.58	1.58	2.08	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.212
1.545	1.545	2.045	2.56	3.08	4.095	5.095	6.095	8.115	10.115	12.142	14.142	14.142
0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9

螺紋尺寸
d

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

(M45)

M48

(M52)

P	螺距
b	參考
d_k	最大值	平頭
		滾花頭
	最小值
d_s	最大值
	最小值
k	最大值
	最小值
s ^①	公稱
	最小值
	最大值	1 Column
		2 Column
t	最小值

2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
52	56	60	66	72	78	84	90	96	102	108	116
30	33	36	40	45	50	54	58	63	68	72	78
30.33	33.39	36.39	40.39	45.39	50.39	54.46	58.46	63.46	68.46	72.46	78.46
29.67	32.61	35.61	39.61	44.61	49.61	53.54	57.54	62.54	67.54	71.54	77.54
20	22	24	27	30	33	36	39	42	45	48	52
19.67	21.67	23.67	26.67	29.67	32.61	35.61	38.61	41.61	44.61	47.61	51.54
20	22	24	27	30	33	36	39	42	45	48	52
19.48	21.48	23.48	26.48	29.48	32.38	35.38	38.38	41.38	44.38	47.38	51.26
17	17	19	19	22	24	27	27	32	32	36	36
17.05	17.05	19.065	19.065	22.065	24.065	27.065	27.065	32.08	32.08	36.08	36.08
17.23	17.23	19.275	19.275	19.275	24.275	27.275	27.275	32.33	32.33	36.33	36.33
17.23	17.23	19.275	19.275	19.275	24.275	27.275	27.275	32.33	32.33	36.33	36.33
10	11	12	13.5	15.5	16.5	19	20	21	23	24	26

①,The column 1 of s (max.) shall apply to cap screws of 8.8 and 10.9 in strength division and those of A 2-50 and A 2-70 in property division.The column 2 shall apply to cap screws of 12.9 in strength division.Provided that the column 1 can apply to those of 12.9 in strength division in accordance with the agreement between the purchaser and the manufacturer.
Furthermore, the s (max.) of M 20 and over in nominaldesignation of screw thread shall apply to all of cap screwsstrength division and property division.

替代列表

JIS B 1176 - 1988 JIS B 1176 - 2006 JIS B 1176 - 2014

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
