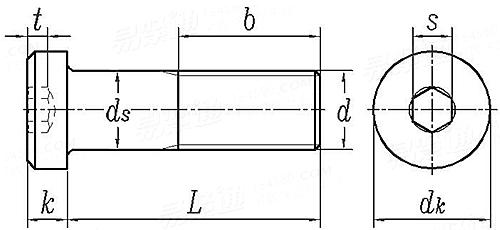

内六角矮圓柱頭螺釘 [Table 1G] ASME B 18.3 - 2003 (R2008)

選擇規格尺寸點擊↓

10#

1/4

5/16

3/8

7/16

1/2

5/8

ASME B 18.3 - 2003 (R2008) 内六角矮圓柱頭螺釘 [Table 1G]

尺寸單位: inch

美标ASME B18.3 - 2003 (R2008) ASME18.3 18. 内六角矮圓柱頭螺釘 [Table 1G]

掃一掃分享

單重計算公差美制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級

螺紋規格
d

10#

1/4

5/16

3/8

7/16

1/2

5/8

d	螺紋直徑
PP	粗牙/UNC
	細牙/UNF
	超細牙/UNEF
d_s	最大值
d_s	最小值
d_k	最大值
d_k	最小值
k	最大值
k	最小值
s	公稱
t	最小值

0.1120	0.1250	0.1380	0.1640	0.1900	0.2500	0.3125	0.3750	0.4375	0.5000	0.6250
40.0	40.0	32.0	32.0	24.0	20.0	18.0	16.0	14.0	13.0	11.0
48.0	44.0	40.0	36.0	32.0	28.0	24.0	24.0	20.0	20.0	18.0
-	-	-	-	-	32.0	32.0	32.0	28.0	28.0	24.0
0.1120	0.1250	0.1380	0.1640	0.1900	0.2500	0.3125	0.3750	0.4375	0.5000	0.6250
0.1075	0.1202	0.1329	0.1585	0.1840	0.2435	0.3053	0.3678	0.4294	0.4919	0.6163
0.183	0.205	0.226	0.270	0.312	0.375	0.437	0.562	0.625	0.750	0.875
0.178	0.200	0.221	0.265	0.307	0.369	0.431	0.556	0.618	0.743	0.867
0.059	0.065	0.072	0.085	0.098	0.127	0.158	0.192	0.223	0.254	0.316
0.053	0.059	0.066	0.079	0.092	0.121	0.152	0.182	0.213	0.244	0.306
0.050	0.062	0.062	0.078	0.094	0.125	0.156	0.188	0.219	0.250	0.312
0.038	0.044	0.050	0.060	0.072	0.094	0.110	0.115	0.135	0.151	0.250

替代列表

ASME B 18.3 - 2003(R2008) ASME B 18.3 - 2012

工藝相關

ASME B 18.3 (Table 18) - 2012

内六角凹槽對邊尺寸偏差

ASME B 18.3 (Table 4) - 2012

内凹槽螺釘無螺紋杆長和夾緊長度

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求
