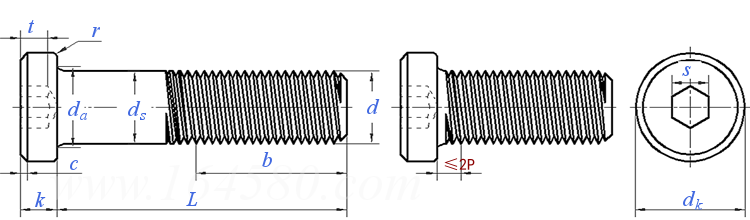

内六角矮圓柱頭螺釘 [Table 12] ASME B 18.3 - 2012

選擇規格尺寸點擊↓

10#

1/4

5/16

3/8

7/16

1/2

5/8

尺寸單位: inch

美标ASME B18.3 - 2012 ASME18.3 18.3ASME 内六角矮圓柱頭螺釘 [Table 12]

掃一掃分享

單重計算公差美制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級

公稱直徑
d

10#

1/4

5/16

3/8

7/16

1/2

5/8

d	螺紋直徑
PP	粗牙/UNC
	細牙/UNF
	超細牙/UNEF
d_s	最大值
d_s	最小值
d_k	最大值
d_k	最小值
k	最大值
k	最小值
s	公稱
t	最小值

0.112	0.125	0.138	0.164	0.19	0.25	0.3125	0.375	0.4375	0.5	0.625
40	40	32	32	24	20	18	16	14	13	11
48	44	40	36	32	28	24	24	20	20	18
-	-	-	-	-	32	32	32	28	28	24
0.112	0.125	0.138	0.164	0.19	0.25	0.3125	0.375	0.4375	0.5	0.625
0.1075	0.1202	0.1329	0.1585	0.184	0.2435	0.3053	0.3678	0.4294	0.4919	0.6163
0.183	0.205	0.226	0.27	0.312	0.375	0.437	0.562	0.625	0.75	0.875
0.176	0.198	0.218	0.262	0.303	0.365	0.431	0.55	0.618	0.743	0.867
0.059	0.065	0.072	0.085	0.098	0.127	0.158	0.192	0.223	0.254	0.316
0.053	0.059	0.066	0.079	0.092	0.121	0.152	0.182	0.213	0.244	0.306
0.05	0.062	0.062	0.078	0.094	0.125	0.156	0.188	0.219	0.25	0.312
0.038	0.044	0.05	0.06	0.072	0.094	0.11	0.115	0.135	0.151	0.25
