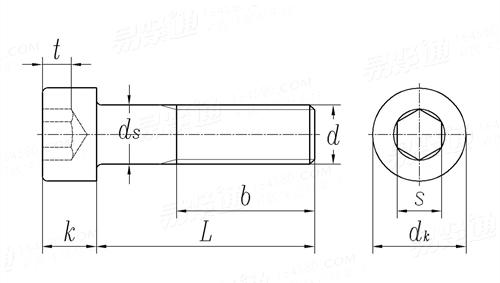

内六角圓柱頭螺釘 JIS B 1176 - 2006

選擇規格尺寸點擊↓

M1.6

M2.5

M10

M12

(M14)

M16

M20

M24

M30

M36

M42

M48

M56

M64

括号内尺寸為非優選

尺寸單位: mm

日标JIS B1176 - 2006 JIS1176 1176JIS 内六角圓柱頭螺釘

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

螺紋尺寸
d

M1.6

M2.5

M10

M12

P	螺距	粗牙
		細牙 -1
		細牙 -2
b	參考
d_k	最大值	平頭
		滾花頭
	最小值
d_s	最大值
	最小值
k	最大值
	最小值
s	公稱
	最大值
	最小值
t	最小值

0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75
-	-	-	-	-	-	-	1	1	1.5
-	-	-	-	-	-	-	-	(1.25)	(1.25)
15	16	17	18	20	22	24	28	32	36
3	3.8	4.5	5.5	7	8.5	10	13	16	18
3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27
2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73
1.6	2	2.5	3	4	5	6	8	10	12
1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73
1.6	2	2.5	3	4	5	6	8	10	12
1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57
1.5	1.5	2	2.5	3	4	5	6	8	10
1.58	1.58	2.08	2.58	3.08	4.095	5.14	6.14	8.175	10.175
1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025
0.7	1	1.1	1.3	2	2.5	3	4	5	6

千件鋼制重≈kg

螺紋尺寸
d

(M14)

M16

M20

M24

M30

M36

M42

M48

M56

M64

P	螺距	粗牙
		細牙 -1
		細牙 -2
b	參考
d_k	最大值	平頭
		滾花頭
	最小值
d_s	最大值
	最小值
k	最大值
	最小值
s	公稱
	最大值
	最小值
t	最小值

2	2	2.5	3	3.5	4	4.5	5	5.5	6
-	1.5	1.5	2	2	3	3	3	4	4
(1.5)	-	(2)	-	-	-	-	-	-	-
40	44	52	60	72	84	96	108	124	140
21	24	30	36	45	54	63	72	84	96
21.33	24.33	30.33	36.39	45.39	54.46	63.46	72.46	84.54	96.54
20.67	23.67	29.67	35.61	44.61	53.54	62.54	71.54	83.46	95.46
14	16	20	24	30	36	42	48	56	64
13.73	15.73	19.67	23.67	29.67	35.61	41.61	47.61	55.54	63.54
14	16	20	24	30	36	42	48	56	64
13.57	15.57	19.48	23.48	29.48	35.38	41.38	47.38	55.26	63.26
12	14	17	19	22	27	32	36	41	46
12.212	14.212	17.23	19.275	22.275	27.275	32.33	36.33	41.33	46.33
12.032	14.032	17.05	19.065	22.065	27.065	32.08	36.08	41.08	46.08
7	8	10	12	15.5	19	24	28	34	38

千件鋼制重≈kg

替代列表

JIS B 1176 - 1988 JIS B 1176 - 2006 JIS B 1176 - 2014

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
