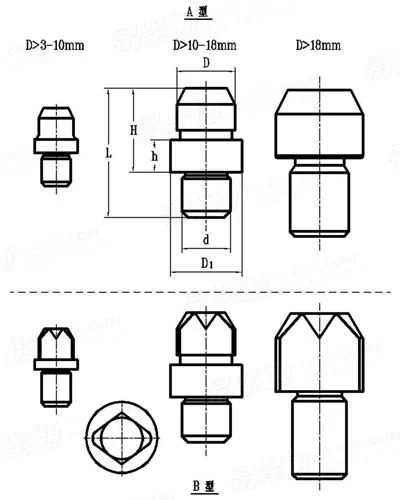

機床夾具零件及部件固定式定位銷 GB /T 2203 - 1991

選擇規格尺寸點擊↓

尺寸單位: mm

國标GB /T2203 - 1991 GB2203 2203GB 機床夾具零件及部件固定式定位銷

掃一掃分享

公差

序号 ^①

D ^②	最大值
D ^②	最小值
H	公稱
d	公稱
	最大值
	最小值
D₁	公稱
L	公稱
h	公稱

6	6	8	8	10	10	14	14	18	18	20	20	20
3	3	6	6	8	8	10	10	14	14	18	18	18
8	14	10	18	12	22	14	24	16	26	12	18	28
6	6	8	8	10	10	12	12	15	15	12	12	12
6.023	6.023	8.028	8.028	10.028	10.028	12.034	12.034	15.034	15.034	12.034	12.034	12.034
6.015	6.015	8.019	8.019	10.019	10.019	12.023	12.023	15.023	15.023	12.023	12.023	12.023
12	12	14	14	16	16	18	18	22	22	-	-	-
16	22	20	28	24	34	26	36	30	40	26	32	42
3	7	3	7	4	8	4	9	5	10	-	-	-

序号 ^①

D ^②	最大值
D ^②	最小值
H	公稱
d	公稱
	最大值
	最小值
D₁	公稱
L	公稱
h	公稱

24	24	24	30	30	30	40	40	40	50	50	50
20	20	20	24	24	24	30	30	30	40	40	40
14	22	32	16	25	34	18	30	38	20	35	45
15	15	15	15	15	15	18	18	18	22	22	22
15.034	15.034	15.034	15.034	15.034	15.034	18.041	18.041	18.041	22.041	22.041	22.041
15.023	15.023	15.023	15.023	15.023	15.023	18.028	18.028	18.028	22.028	22.028	22.028
-	-	-	-	-	-	-	-	-	-	-	-
30	38	48	36	45	54	42	54	62	50	65	75
-	-	-	-	-	-	-	-	-	-	-	-

①,表中首行數值僅為便于查閱而設，并不存在其他含義
②,表中D值：D min ＜ D ≤ D max 其數值僅為D值的取值範圍，具體的公差按設計要求決定。
