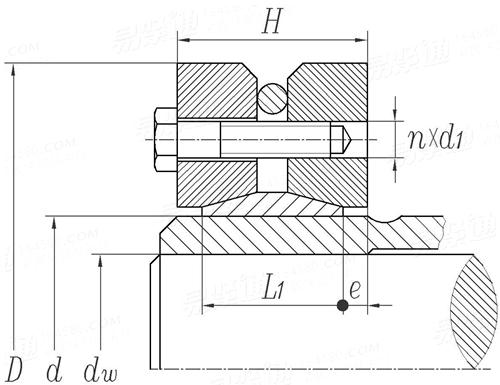

Z7C型脹緊聯結套 JB /T 7934 - 1999

選擇規格尺寸點擊↓

140

155

165

175

185

200

220

240

260

280

300

320

340

360

390

420

460

500

同規格，其他部分尺寸不同

尺寸單位: mm

機械行業JB /T7934 - 1999 JB7934 7934JB Z7C型脹緊聯結套

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱直徑
d

140

155

165

175

185

D
d_w
L₁
H
d₁
n
e
額定負荷-軸向力/KN
額定負荷-轉矩/KN·m
螺釘的擰緊力矩/N·m
單重≈kg

230	230	230	263	263	263	290	290	290	300	300	300	330	330
95	100	105	105	110	115	115	120	125	125	130	135	135	140
60	60	60	66	66	66	72	72	72	72	72	72	92	92
74	74	74	80	80	80	88	88	88	88	88	88	112	112
M12×55	M12×55	M12×55	M12×60	M12×60	M12×60	M16×65	M16×65	M16×65	M16×65	M16×65	M16×65	M16×80	M16×80
12	12	12	15	15	15	10	10	10	10	10	10	15	15
7	7	7	7	7	7	8	8	8	8	8	8	10	10
436	480	518	545	591	633	701	758	811	832	880	924	1037	1100
20.7	24	27.2	28.6	32.5	36.4	40.3	45.5	50.7	52	57.2	62.4	70	77
100	100	100	100	100	100	240	240	240	240	240	240	240	240
13	13	13	20	20	20	26	26	26	29	29	29	47	47

公稱直徑
d

185

200

220

240

260

280

D
d_w
L₁
H
d₁
n
e
額定負荷-軸向力/KN
額定負荷-轉矩/KN·m
螺釘的擰緊力矩/N·m
單重≈kg

330	350	350	350	370	370	370	405	405	405	430	430	430	460
145	145	150	155	160	165	170	170	180	190	190	200	210	210
92	92	92	92	114	114	114	120	120	120	136	136	136	148
112	112	112	112	134	134	134	144	144	144	160	160	160	172
M16×80	M16×80	M16×80	M16×80	M16×90	M16×90	M16×90	M20×100	M20×100	M20×100	M20×110	M20×110	M20×110	M20×110
15	15	15	15	20	20	20	15	15	15	16	16	16	20
10	10	10	10	10	10	10	12	12	12	12	12	12	12
1159	1291	1353	1409	1625	1703	1776	1835	1994	2137	2242	2390	2542	2686
84	93	101.5	109.2	130	140.5	151	156	179.5	203	213	239	265	282
240	240	240	240	240	240	240	470	470	470	470	470	470	470
47	50	50	50	65	65	65	87	87	87	100	100	100	132

公稱直徑
d

280

300

320

340

360

D
d_w
L₁
H
d₁
n
e
額定負荷-軸向力/KN
額定負荷-轉矩/KN·m
螺釘的擰緊力矩/N·m
單重≈kg

460	460	485	485	485	520	520	520	570	570	570	590	590	590
220	230	230	240	245	240	250	260	250	260	270	280	290	295
148	148	152	152	152	160	160	160	176	176	176	180	180	180
172	172	176	176	176	184	184	184	200	200	200	204	204	204
M20×110	M20×110	M20×120	M20×120	M20×120	M20×130	M20×130	M20×130	M24×130	M24×130	M24×130	M24×140	M24×140	M24×140
20	20	20	20	20	24	24	24	20	20	20	20	20	20
12	12	12	12	12	12	12	12	12	12	12	12	12	12
2900	3087	2965	3175	3273	3317	3536	3738	4080	4307	4519	4707	4931	5044
319	355	341	381	401	398	442	486	510	560	610	659	715	744
470	470	470	470	470	470	470	470	820	820	820	820	820	820
132	132	140	140	140	165	165	165	240	240	240	250	250	250

公稱直徑
d

390

420

460

500

D
d_w
L₁
H
d₁
n
e
額定負荷-軸向力/KN
額定負荷-轉矩/KN·m
螺釘的擰緊力矩/N·m
單重≈kg

660	660	660	690	690	690	770	770	770	850	850	850
300	310	320	330	340	350	360	370	380	400	410	420
188	188	188	214	214	214	224	224	224	246	246	246
212	212	212	238	238	238	252	252	252	274	274	274
M24×140	M24×140	M24×140	M24×150	M24×150	M24×150	M27×170	M27×170	M27×170	M27×180	M27×180	M27×180
24	24	24	28	28	28	24	24	24	30	30	30
12	12	12	12	12	12	14	14	14	14	14	14
5733	5903	6063	6182	6470	6743	7222	7514	7789	9400	9659	9905
860	915	970	1020	1100	1180	1300	1390	1480	1880	1980	2080
820	820	820	820	820	820	1210	1210	1210	1210	1210	1210
350	350	350	410	410	410	540	540	540	750	750	750

①,Z7C型脹緊聯結套螺釘的機械性能等級為10.9級。

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
