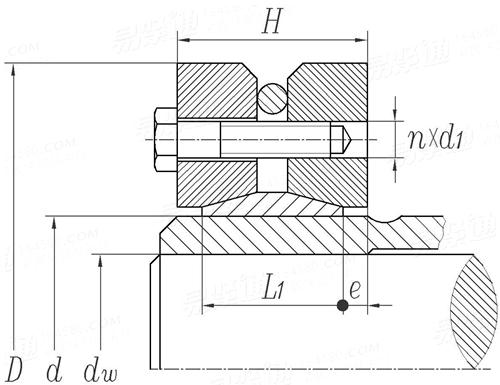

Z7A型脹緊聯結套 JB /T 7934 - 1999

選擇規格尺寸點擊↓

125

140

155

165

175

185

195

220

240

260

280

300

320

340

360

390

420

460

500

同規格，其他部分尺寸不同

尺寸單位: mm

機械行業JB /T7934 - 1999 JB7934 7934JB Z7A型脹緊聯結套

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱直徑
d

125

140

155

165

175

D
d_w
L₁
H
d₁
n
e
額定負荷-軸向力/KN
額定負荷-轉矩/KN·m
螺釘的擰緊力矩/N·m
單重≈kg

185	185	185	220	220	220	245	245	245	260	260	260	275	275	275
95	100	105	110	120	125	130	135	140	135	140	145	145	150	155
39	39	39	39	39	39	39	39	39	46	46	46	46	46	46
52	52	52	52	52	52	52	52	52	62	62	62	62	62	62
M10×40	M10×40	M10×40	M10×40	M10×40	M10×40	M10×40	M10×40	M10×40	M12×50	M12×50	M12×50	M12×50	M12×50	M12×50
8	8	8	10	10	10	12	12	12	10	10	10	10	10	10
6	6	6	6	6	6	6	6	6	8	8	8	8	8	8
242	260	276	391	330	352	385	427	464	474	507	538	538	573	606
11.5	13	14.5	16	20	22	25	28.8	32.5	32	32.5	39	39	43	47
58	58	58	58	58	58	58	58	58	100	100	100	100	100	100
6	6	6	8	8	8	10	10	10	14	14	14	16	16	16

公稱直徑
d

185

195

220

240

260

D
d_w
L₁
H
d₁
n
e
額定負荷-軸向力/KN
額定負荷-轉矩/KN·m
螺釘的擰緊力矩/N·m
單重≈kg

295	295	295	315	315	315	345	345	345	370	370	370	395	395	395
155	160	165	165	170	175	180	190	200	200	210	215	220	230	235
46	46	46	56	56	56	66	66	66	66	66	66	72	72	72
62	62	62	72	72	72	84	84	84	84	84	84	92	92	92
M12×50	M12×50	M12×50	M12×55	M12×55	M12×55	M16×65	M16×65	M16×65	M16×65	M16×65	M16×65	M16×70	M16×70	M16×70
12	12	12	15	15	15	9	9	9	12	12	12	12	12	12
8	8	8	8	8	8	9	9	9	9	9	9	9	9	9
632	662	691	800	835	869	978	1063	1140	1200	1276	1312	1309	1384	1421
49	53	57	66	71	76	88	101	114	120	134	141	144	159	167
100	100	100	100	100	100	240	240	240	240	240	240	240	240	240
20	20	20	27	27	27	35	35	35	44	44	44	48	48	48

公稱直徑
d

280

300

320

340

360

D
d_w
L₁
H
d₁
n
e
額定負荷-軸向力/KN
額定負荷-轉矩/KN·m
螺釘的擰緊力矩/N·m
單重≈kg

425	425	425	460	460	460	495	495	495	535	535	535	555	555	555
230	240	250	250	260	270	270	280	290	290	300	305	300	310	320
84	84	84	84	84	84	84	84	84	84	84	84	100	100	100
104	104	104	104	104	104	106	106	106	106	106	106	122	122	122
M16×75	M16×75	M16×75	M16×75	M16×75	M16×75	M16×80	M16×80	M16×80	M16×80	M16×80	M16×80	M20×90	M20×90	M20×90
15	15	15	16	16	16	18	18	18	20	20	20	15	15	15
10	10	10	10	10	10	11	11	11	11	11	11	11	11	11
1478	1583	1680	1704	1800	1889	1955	2036	2076	2193	2300	2354	2547	2645	2738
170	190	210	213	234	255	264	285	301	318	345	359	382	410	438
240	240	240	240	240	240	240	240	240	240	240	240	470	470	470
60	60	60	75	75	75	84	84	84	100	100	100	125	125	125

公稱直徑
d

390

420

460

500

D
d_w
L₁
H
d₁
n
e
額定負荷-軸向力/KN
額定負荷-轉矩/KN·m
螺釘的擰緊力矩/N·m
單重≈kg

595	595	595	630	630	630	685	685	685	750	750	750
330	340	350	350	360	370	390	400	410	420	430	440
112	112	112	120	120	120	132	132	132	152	152	152
136	136	136	144	144	144	158	158	158	178	178	178
M20×100	M20×100	M20×100	M20×100	M20×100	M20×100	M20×110	M20×110	M20×110	M20×120	M20×120	M20×120
18	18	18	20	20	20	24	24	24	30	30	30
12	12	12	12	12	12	13	13	13	13	13	13
3091	3194	3291	3371	3500	3620	3949	4300	4634	4881	5233	5568
510	543	576	590	630	670	770	860	950	1025	1125	1225
470	470	470	470	470	470	470	470	470	470	470	470
156	156	156	185	185	185	235	235	235	320	320	320

①,Z7A型脹緊聯結套螺釘的機械性能等級為10.9級。

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
