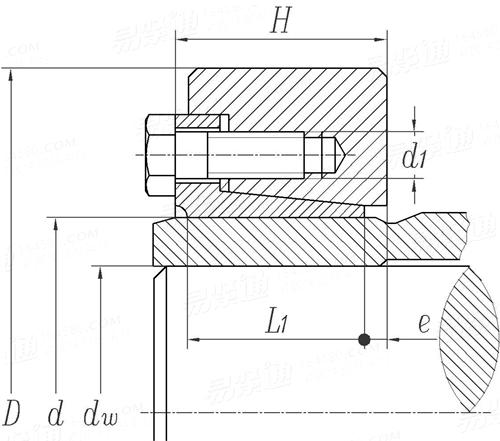

Z10型脹緊聯結套 JB /T 7934 - 1999

選擇規格尺寸點擊↓

90 (85,90)

100 (95,100)

110 (105,110)

125 (120,125,130)

140 (135,140)

155 (155,160)

165 (165,170)

175 (175,180)

185 (185,190)

200 (195,200)

220 (210,220)

240 (230,240)

260 (250,260)

280 (270,280)

300 (290,300)

320 (310,320)

340 (330,340)

360 (350,360)

390 (380,390)

420 (400,420)

440 (430,440)

460 (450,460)

480 (470,480)

500 (490,500)

530 (520,530)

560 (550,560)

590 (580,590)

620 (610,620)

同規格，其他部分尺寸不同

尺寸單位: mm

機械行業JB /T7934 - 1999 JB7934 7934JB Z10型脹緊聯結套

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱直徑
d

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

32	37	41	44	44	47	47	50	50	50	60	60	60	72
10	12	14	15	16	17	18	19	20	22	24	25	26	28
9	9	12	12	12	12	12	14	14	14	16	16	16	18
11	11	15	15	15	15	15	18	18	18	20	20	20	22
M5×8	M5×8	M5×12	M5×12	M5×12	M5×12	M5×12	M5×12	M5×12	M5×12	M5×12	M5×12	M5×12	M6×16
1	1	1.5	1.5	1.5	1.5	1.5	2	2	2	2	2	2	2
8	9	13	10	14	16	20	17	20	25	23	25	27	37
0.038	0.052	0.09	0.08	0.112	0.14	0.184	0.16	0.2	0.28	0.28	0.32	0.36	0.55
5	5	5	5	5	5	5	5	5	5	5	5	5	12
0.06	0.08	0.12	0.12	0.12	0.15	0.15	0.2	0.2	0.2	0.3	0.3	0.3	0.4

公稱直徑
d

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

72	72	80	80	80	90	90	90	100	100	100	110	110	110
30	31	34	35	36	38	40	42	42	45	48	48	50	52
18	18	20	20	20	22	22	22	23	23	23	23	23	23
22	22	24	24	24	26	26	26	29	29	29	29	29	29
M6×16	M6×16	M6×16	M6×16	M6×16	M6×16	M6×16	M6×16	M6×16	M6×16	M6×16	M6×16	M6×16	M6×16
2	2	2	2	2	2.5	2.5	2.5	3	3	3	3	3	3
43	46	41	44	47	55	64	72	54	66	77	69	77	84
0.68	0.74	0.7	0.77	0.85	1.1	1.32	1.54	1.13	1.5	1.85	1.6	1.92	2.17
12	12	12	12	12	12	12	12	12	12	12	12	12	12
0.4	0.4	0.6	0.6	0.6	0.8	0.8	0.8	1.1	1.1	1.1	1.3	1.3	1.3

公稱直徑
d

90
(85,90)

100
(95,100)

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

115	115	115	138	138	138	145	145	145	155	155	155	170	170
50	55	60	55	60	65	60	65	70	65	70	75	70	75
23	23	23	25	25	25	25	25	25	30	30	30	34	34
29	29	29	31	31	31	31	31	31	38	38	38	43	43
M6×16	M6×16	M6×16	M8×25	M8×25	M8×25	M8×25	M8×25	M8×25	M8×25	M8×25	M8×25	M8×25	M8×25
3	3	3	4	4	4	4	4	4	4	4	4	4	4
73	90	103	97	117	133	108	121	133	145	170	190	170	200
1.8	2.44	3.1	2.7	3.52	4.3	3.25	3.97	4.7	4.7	5.98	7.2	5.91	7.42
12	12	12	29	29	29	29	29	29	29	29	29	29	29
1.4	1.4	1.4	1.7	1.7	1.7	1.9	1.9	1.9	3.3	3.3	3.3	4.7	4.7

公稱直徑
d

100
(95,100)

110
(105,110)

125
(120,125,130)

140
(135,140)

155
(155,160)

165
(165,170)

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

170	185	185	185	215	215	215	230	230	230	263	263	263	290
80	80	85	90	90	95	100	100	105	110	110	115	120	120
34	39	39	39	42	42	42	46	46	46	50	50	50	56
43	40	40	40	53	53	53	58	58	58	62	62	62	68
M8×25	M10×30	M10×30	M10×30	M10×30	M10×30	M10×30	M12×35	M12×35	M12×35	M12×35	M12×35	M12×35	M16×40
4	5	5	5	5.5	5.5	5.5	6	6	6	6	6	6	7
220	226	255	280	280	315	340	370	400	431	440	473	508	525
8.9	9.05	10.38	12.6	12.85	14.98	17	18.5	21.1	23.7	24	27	30.2	34.5
29	58	58	58	58	58	58	100	100	100	100	100	100	240
4.7	5.9	5.9	5.9	8.3	8.3	8.3	10	10	10	15	15	15	22

公稱直徑
d

165
(165,170)

175
(175,180)

185
(185,190)

200
(195,200)

220
(210,220)

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

290	290	300	300	300	330	330	330	350	350	350	370	370	370
125	130	130	135	145	140	145	150	150	155	160	160	165	170
56	56	56	56	56	71	71	71	71	71	71	88	88	88
68	68	68	68	68	85	85	85	85	85	85	103	103	103
M16×40	M16×40	M16×40	M16×40	M16×40	M16×40	M16×40	M16×40	M16×40	M16×40	M16×40	M16×50	M16×50	M16×50
7	7	8	8	8	8	8	8	8	8	8	9	9	9
620	660	650	680	720	870	910	960	1020	1070	1100	1210	1270	1335
38.6	42.8	42	46.2	50.6	61	66.2	71.7	77	82.7	88.1	97	105	113.5
240	240	240	240	240	240	240	240	240	240	240	240	240	240
22	22	22	22	22	37	37	37	41	41	41	54	54	54

公稱直徑
d

240
(230,240)

260
(250,260)

280
(270,280)

300
(290,300)

320
(310,320)

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

405	405	405	430	430	430	460	460	460	485	485	485	520	520
170	180	190	190	200	210	210	220	230	230	240	245	240	250
92	92	92	103	103	103	114	114	114	122	122	122	122	122
107	107	107	119	119	119	132	132	132	140	140	140	140	140
M20×60	M20×60	M20×60	M20×60	M20×60	M20×60	M20×60	M20×60	M20×60	M20×60	M20×60	M20×60	M20×60	M20×60
10	10	10	10	10	10	10	10	10	10	10	10	10	10
1390	1515	1630	1700	1820	1930	2030	2150	2330	2280	2450	2530	2510	2682
118	136	154.8	162	182	202.8	213	240	269	262	294	310	301	335
470	470	470	470	470	470	470	470	470	470	470	470	470	470
67	67	67	82	82	82	102	102	102	118	118	118	131	131

公稱直徑
d

320
(310,320)

340
(330,340)

360
(350,360)

390
(380,390)

420
(400,420)

440
(430,440)

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

520	570	570	570	590	590	590	650	650	650	670	670	670	740
260	250	260	270	280	290	300	300	310	320	330	340	350	340
122	134	134	134	140	140	140	144	144	144	164	164	164	172
140	155	155	155	159	159	159	163	163	163	184	184	184	192
M20×60	M20×70	M20×70	M20×70	M20×70	M20×70	M20×70	M24×80	M24×80	M24×80	M24×80	M24×80	M24×80	M24×80
10	12	12	12	12	12	12	14	14	14	14	14	14	15
2850	3120	3300	3430	3800	3970	3990	4260	4400	4640	4770	5000	5200	5500
370	389	426	463	532	575	599	640	690	742	787	846	910	935
470	470	470	470	470	470	470	820	820	820	820	820	820	820
131	186	186	186	204	204	204	250	250	250	300	300	300	400

公稱直徑
d

440
(430,440)

460
(450,460)

480
(470,480)

500
(490,500)

530
(520,530)

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

740	740	770	770	770	800	800	800	850	850	850	910	910	910
350	360	360	370	380	380	390	400	400	410	420	430	440	450
172	172	172	172	172	188	188	188	188	188	188	213	213	213
192	192	192	192	192	213	213	213	213	213	213	238	238	238
M24×80	M24×80	M24×80	M24×80	M24×80	M24×90	M24×90	M24×90	M27×90	M27×90	M27×90	M27×100	M27×100	M27×100
15	15	15	15	15	15	15	15	15	15	15	17	17	17
5720	6000	6050	6200	6500	6560	6750	6940	7500	7720	7920	8470	9000	9250
1000	1060	1090	1150	1235	1280	1350	1420	1480	1600	1720	1880	2000	2120
820	820	820	820	820	820	820	820	1210	1210	1210	1210	1210	1210
400	400	420	420	420	500	500	500	570	570	570	740	740	740

公稱直徑
d

560
(550,560)

590
(580,590)

620
(610,620)

D
d_w
L₁
H
d₁
e
額定負荷-軸向力 /KN
額定負荷-轉矩 /KN·m
螺釘的擰緊力矩/N·m
單重≈kg

940	940	940	980	980	980	1020	1020	1020
450	460	470	470	480	490	500	510	520
213	213	213	228	228	228	254	254	254
238	238	238	260	260	260	286	286	286
M27×100	M27×100	M27×100	M27×100	M27×100	M27×100	M30×110	M30×110	M30×110
17	17	17	18	18	18	18	18	18
8950	9350	9700	10600	11000	11450	11000	11300	11900
2020	2150	2280	2500	2650	2800	2740	2900	3100
1210	1210	1210	1210	1210	1210	1640	1640	1640
770	770	770	900	900	900	1080	1080	1080

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！

類似标準及供貨信息

1	[國标] GB 1160.2 (A) - 1989	旋入式圓形油标 A型 Oil Level Indicators - Screwing Round Type - Type A 供應商(1)
2	[國标] GB /T 39949.1 (AP2) - 2021	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 活塞杆用雙耳環内螺紋 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Rod clevis, female thread
3	[國标] GB /T 39949.1 (AF3) - 2021	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 活塞杆用法蘭圓形 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Rod flange, circular
4	[國标] GB /T 39949.1 (AB4) - 2021	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 雙耳環支架通孔對稱型 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Clevis bracket straight
5	[國标] GB /T 39949.1 (AB3) - 2021	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 雙耳環支架通孔斜型 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Clevis bracket, in angle
6	[國标] GB /T 39949.1 (AT4) - 2021	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 耳軸支架 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Trunnion bracket
7	[國标] GB /T 39949.1 (AP6) - 2021	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 活塞杆用帶關節軸承的單耳環内螺紋 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Rod eye spherical, female thread
8	[國标] GB /T 39949.1 (AP4) - 2021	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 活塞杆用單耳環内螺紋 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Rod eye plain, female thread
9	[國标] GB /T 2157 - 1991	機床夾具零部件—多手柄螺母 The parts and units of jigs and fixtures Multiple handle nut
10	[國标] GB /T 2160 - 1991	機床夾具零件及部件壓緊螺釘 The Parts And Units Of Jigs And Fixtures-holddown Screw
11	[國标] GB /T 2171 - 1991	機床夾具零件及部件光面壓塊 The Parts and Units of Jigs and Fixtures - Smooth Face Clamp Plate
12	[國标] GB /T 2196 (A/C) - 1991	機床夾具零件及部件 - 鉤形壓闆 A型和C型 The Parts and Units of Jigs and Fixtures - Hook Clamp Plate - Type A and C
13	[國标] GB /T 2196 (B) - 1991	機床夾具零件及部件 - 鉤形壓闆 B型 The Parts and Units of Jigs and Fixtures - Hook Clamp Plate - Type B
14	[國标] GB /T 2197 - 1991	機床夾具零件及部件鉤形壓闆（組合） The Parts and Units of Jigs and Fixtures Hook Clamp Plate (Combinatlon)
15	[國标] GB /T 2198 - 1991	機床夾具零件及部件 - 立式鉤型壓闆（組合） The parts and units of jigs and fixtures - Vertical hook clamp plate(Combination)
16	[國标] GB /T 2199 - 1991	機床夾具零件及部件 - 端面鉤形壓闆（組合） The parts and units of jigs and fixtures - End face hook plate(Combination)
17	[國标] GB /T 2200 - 1991	機床夾具零件及部件 - 側面鉤形壓闆（組合） The parts and units of jigs and fixtures - Side face hook clamp plate(Combination)
18	[國标] GB /T 2201 - 1991	機床夾具零件及部件定位襯套 The parts and units of jigs and fixtures locating bush
19	[國标] GB /T 2203 - 1991	機床夾具零件及部件固定式定位銷 The parts and units of jigs and fixtures ( Fixed locating pin)
20	[國标] GB /T 2205 - 1991	機床夾具零件及部件 - 定位插銷 The Parts and Units of Jigs and Fixtures - Aligning Pin
21	[國标] GB 2206 - 1991	機床夾具零件及部件 - 定位鍵 The parts and units of jigs fixtures - Locating key
22	[國标] GB /T 2220 - 1991	機床夾具零件及部件 - 活動手柄 The Parts and Units of Jigs and Fixtures - Flexible Handle
23	[國标] GB /T 2225 - 1991	機床夾具零件及部件 - 起重螺栓 The Parts and Units of Jigs and Fixtures - Lifting Bolt
24	[國标] GB /T 2230 - 1991	機床夾具零件及部件 - 調節支承 The parts and units of jigs and fixtures Adjustable supporters
25	[國标] GB /T 2234 - 1991	機床夾具零件及部件 - 低支腳 The parts and units of jigs and fixtures - Short legs
26	[國标] GB /T 2256 - 1991	機床夾具零件及部件塑料夾具用六角螺釘 The Parts And Units Of Jigs And Fixtures.hex Screw For Plastic Fixture
27	[國标] GB /T 2257 - 1991	機床夾具零件及部件塑料夾具用内六角螺釘 The Parts And Units Of Jigs And Fixtures.inner Hex Screw For Plastic Fixtures
28	[國标] GB 1160.2 (B) - 1989	旋入式圓形油标 B型 Oil Level Indicators - Screwing Round Type - Type B
29	[國标] GB 3473 - 1983	船用帶舌插銷 A型 Marine Toggle Pins - Type A
30	[國标] GB 3473 - 1983	船用帶舌插銷 B型 Marine Toggle Pins - Type B
31	[德标] DIN 71752 - 1994	叉型頭, U型頭 Fork heads 供應商(1)
32	[德标] DIN 6314 - 2009	普通夾具直邊卡箍夾緊塊 Clamp, straight
33	[德标] DIN 6315 (B) - 2009	叉形壓闆夾鉗 B型 Clamp, forked - Form B
34	[德标] DIN 6315 (C) - 2009	叉形壓闆夾鉗 C型 Clamp, forked - Form C
35	[德标] DIN 6306 (-2) - 2002	帶移動卡式螺栓的定位銷釘旋杆 Tommy screws with moveable clamping bolt - bar
36	[德标] DIN 6306 (-3) - 2002	帶移動卡式螺栓的定位銷釘杆端帽 Tommy screws with moveable clamping bolt - end caps
37	[德标] DIN 6320 - 2002	工裝和夾具用螺紋體支腳 Feet With Threaded Shank For Jigs And Fixtures
38	[德标] DIN 6321 - 2002	支撐和定位銷 Support And Location Pins
39	[德标] DIN 172 - 1992	導向襯套鑽套 A型和B型 Press Fit Jig Bushes, Headed - Form A and B
40	[德标] DIN 1163 - 1973	鑄型用銷釘 Molding Pins
41	[國際] ISO 8132 (AP2) - 2022	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 活塞杆用雙耳環内螺紋 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Rod clevis, female thread
42	[國際] ISO 8132 (AF3) - 2022	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 活塞杆用法蘭圓形 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Rod flange, circular
43	[國際] ISO 8132 (AB4) - 2022	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 雙耳環支架通孔對稱型 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Clevis bracket straight
44	[國際] ISO 8132 (AB3) - 2022	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 雙耳環支架通孔斜型 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Clevis bracket, in angle
45	[國際] ISO 8132 (AT4) - 2022	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 耳軸支架 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Trunnion bracket
46	[國際] ISO 8132 (AP6) - 2022	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 活塞杆用帶關節軸承的單耳環内螺紋 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Rod eye spherical, female thread
47	[國際] ISO 8132 (AP4) - 2022	液壓傳動 16MPa(160bar)中型和25MPa(250 bar)單杆缸附件 - 活塞杆用單耳環内螺紋 Hydraulic fluid power - accessories for single rod cylinders, 16 MPa (160 bar) medium and 25 MPa (250 bar) series - Rod eye plain, female thread
48	[汽标代号] Q 740	螺紋叉 Threaded Connecting Fork
49	[汽标代号] Q 741	螺紋叉 - 細牙 Threaded Connecting Fork - Fine Thread
50	[汽标代号] Q 742	焊接叉 Weldable Connecting Fork
51	[機械行業] JB /T 7941.2 (A) - 1995	旋入式圓形油标 A型 Oil Level Indicators Screwing Round Type - Type A 供應商(1)
52	[機械行業] JB /T 7934 - 1999	Z1型脹緊聯結套 Locking Assemblies，Type Z1
53	[機械行業] JB /T 7934 - 1999	Z2型脹緊聯結套 Locking Assemblies，Type Z2
54	[機械行業] JB /T 7934 - 1999	Z3型脹緊聯結套 Locking Assemblies，Type Z3
55	[機械行業] JB /T 7934 - 1999	Z4型脹緊聯結套 Locking Assemblies，Type Z4
56	[機械行業] JB /T 7934 - 1999	Z5型脹緊聯結套 Locking Assemblies，Type Z5
57	[機械行業] JB /T 7934 - 1999	Z6型脹緊聯結套 Locking Assemblies，Type Z6
58	[機械行業] JB /T 7934 - 1999	Z7A型脹緊聯結套 Locking Assemblies，Type Z7A
59	[機械行業] JB /T 7934 - 1999	Z7B型脹緊聯結套 Locking Assemblies，Type Z7B
60	[機械行業] JB /T 7934 - 1999	Z7C型脹緊聯結套 Locking Assemblies，Type Z7C
61	[機械行業] JB /T 7934 - 1999	Z8型脹緊聯結套 Locking Assemblies，Type Z8
62	[機械行業] JB /T 7934 - 1999	Z9型脹緊聯結套 Locking Assemblies，Type Z9
63	[機械行業] JB /T 7934 - 1999	Z11型脹緊聯結套 Locking Assemblies，Type Z11
64	[機械行業] JB /T 7934 - 1999	Z12A型脹緊聯結套 Locking Assemblies，Type Z12A
65	[機械行業] JB /T 7934 - 1999	Z12B型脹緊聯結套 Locking Assemblies，Type Z12B
66	[機械行業] JB /T 7934 - 1999	Z12C型脹緊聯結套 Locking Assemblies，Type Z12C
67	[機械行業] JB /T 7934 - 1999	Z13型脹緊聯結套 Locking Assemblies，Type Z13
68	[機械行業] JB /T 7934 - 1999	Z15型脹緊聯結套 Locking Assemblies，Type Z15
69	[機械行業] JB /T 7934 - 1999	Z16型脹緊聯結套 Locking Assemblies，Type Z16
70	[機械行業] JB /T 7934 - 1999	Z17A型脹緊聯結套 Locking Assemblies，Type Z17A
71	[機械行業] JB /T 7934 - 1999	Z17B型脹緊聯結套 Locking Assemblies，Type Z17B
72	[機械行業] JB /T 7934 - 1999	Z18型脹緊聯結套 Locking Assemblies，Type Z18
73	[機械行業] JB /T 7934 - 1999	Z19A型脹緊聯結套 Locking Assemblies，Type Z19A
74	[機械行業] JB /T 7934 - 1999	Z19B型脹緊聯結套 Locking Assemblies，Type Z19B
75	[機械行業] JB /T 7934 - 1999	Z20型脹緊聯結套 Locking Assemblies，Type Z20
76	[機械行業] JB /T 8004.8 (GB 2155) - 1999	機床夾具零件及部件 - 手柄螺母 The Parts And Units Of Jigs And Fixtures Handle Nut
77	[機械行業] JB /T 8004.9 - 1999	機床夾具零件及部件回轉手柄螺母 The Parts and Units of Jigs and Fixtures Rotary Handle Nut
78	[機械行業] JB /T 8006.1 - 1999	機床夾具零件及部件 - 壓緊螺釘 The Parts and Units of Jigs and Fixtures - Holddown Screws
79	[機械行業] JB /T 8007.3 - 1999	鉤形螺栓 Hook Bolt
80	[機械行業] JB /T 8012.3 - 1999	機床夾具零件及部件 - 立式鉤型壓闆（組合） The Parts And Units Of Jigs And Fixtures - Vertical Hook Clamp Plate (Combination)
81	[機械行業] JB /T 8012.4 - 1999	機床夾具零件及部件 - 端面鉤形壓闆（組合） The Parts And Units Of Jigs And Fixtures - End Face Hook Clamp Plate (Combination)
82	[機械行業] JB /T 8012.5 - 1999	機床夾具零件及部件 - 側面鉤形壓闆（組合） The Parts And Units Of Jigs And Fixtures - Sided Face Hook Clamp Plate (Combination)
83	[機械行業] JB /T 8015 - 1999	機床夾具零件及部件 - 定位插銷 The parts and units of jigs and fixtures - Aligning pin
84	[機械行業] JB /T 8026.1 - 1999	六角頭支承 Hex head supporting
85	[機械行業] JB /T 8026.4 - 1999	機床夾具零件及部件 - 調節支承 The parts and units of jigs and fixtures Adjustable supporters
86	[機械行業] JB /T 8026.7 - 1999	機床夾具零件及部件 - 自動調節支承 The parts and units of jigs and fixtures - Automatic adjuctable supportors
87	[機械行業] JB /T 7941.2 (B) - 1995	旋入式圓形油标 B型 Oil Level Indicators Screwing Round Type - Type B
88	[機械行業] JB 8004.10 - 1995	機床夾具零部件—多手柄螺母 The parts and units of jigs and fixtures Multiple handle nut
89	[企标] YJT 13009	腳杯 Leveling mounts 供應商(2)
90	[企标] YJT 13003 (GN 751)	叉形接頭 Fork Joints
91	[企标] YJT 13011	萬向調節腳 swivel leveling mounts
92	[汽标] QC /T 336 - 1999	螺紋叉 Threaded Connecting Fork
93	[汽标] QC /T 337 - 1999	焊接叉 Weldable Connecting Fork
94	[美國軍标] MS 35489 - 2012	護線圈 Grommets, synthetic and silicone rubber, hot-oil and coolant resistant
95	[美标] ANSI /ABMA 8.2 - 1999	英制滾珠軸承和滾柱軸承配件鎖闆 Table 5.3 Lockplate Dimensions Inch Design Series P-000
96	[航空] HB 8069 - 2002	帶螺母的角材 Angle With Nuts
97	[航空] HB 863 - 1990	螺紋頂杆
98	[航空] HB 2026 - 1989	表夾
99	[航空] HB 2059 (-2) - 1989	切向夾緊件 - 襯套
100	[航空] HB 2059 - 1989	切向夾緊件
