機床夾具零件及部件 - 端面鉤形壓闆(組合) JB /T 8012.4 - 1999

選擇規格尺寸 點擊↓

M6

M6

M8

M8

M10

M10

M12

M12

M16

M16

M20

M20

同規格,其他部分尺寸不同

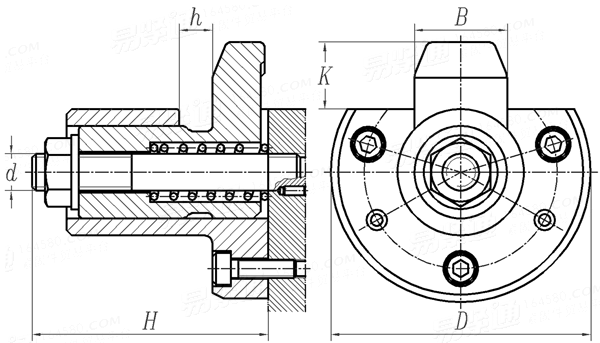

JB /T 8012.4 - 1999 機床夾具零件及部件 - 端面鉤形壓闆(組合)

尺寸單位: mm
機械行業JB /T8012.4 - 1999 JB8012.4 8012.4JB 機床夾具零件及部件 - 端面鉤形壓闆(組合)
JB /T 8012.4 - 1999 機床夾具零件及部件 - 端面鉤形壓闆(組合)
掃一掃分享
公稱直徑
d
M6 M6 M8 M8 M10 M10 M12 M12 M16 M16 M20 M20
k
D
B
H
h
8 14 11 15 10 17 16 26 20 30 28 38
48 48 58 58 68 68 82 82 98 98 106 106
16 16 20 20 25 25 30 30 35 35 40 40
45 50 55 65 70 85 85 100 110 130 130 150
5 5 6 6 8 8 10 10 12 12 14 14
