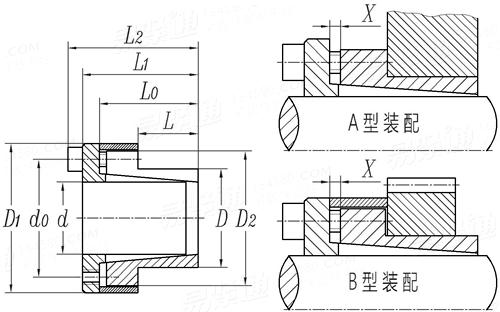

Z11型脹緊聯結套 JB /T 7934 - 1999

選擇規格尺寸點擊↓

尺寸單位: mm

機械行業JB /T7934 - 1999 JB7934 7934JB Z11型脹緊聯結套

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱直徑
d

D
d₀
L₀
L
L₁
L₂
D₁
D₂
A—軸向力 /KN
B—軸向力 /KN
A—轉矩 /KN·m
B—轉矩 /KN·m
螺釘的擰緊力矩/N·m
A—脹套與軸結合面上的壓力N/mm²
B—脹套與軸結合面上的壓力N/mm²
A—脹套與輪毂結合面上的壓力N/mm²
B—脹套與輪毂結合面上的壓力N/mm²
單重≈kg

23	24	24	26	27	28	32	34	34	39	41	43	47	50
28.5	32	32	34	35	36	40	42	42	47	49	51	54	58
23	29	29	34	34	34	41	41	41	41	41	41	45	45
14	16	16	18	18	18	25	25	25	25	25	25	32	32
26	36	36	41	41	41	48	48	48	48	48	48	52	52
30	42	42	47	47	47	54	54	54	54	54	54	58	58
38	45	45	47	49	50	54	56	56	61	62	65	69	72
33	40	40	42	43	44	48	50	50	55	57	59	62	66
108	285	285	320	335	350	353	636	665	745	795	1136	1160	1223
68	179	179	200	212	224	231	400	420	470	500	715	735	797
15 5	35.5	35.5	35.5	35.5	35.5	35.5	53.4	53.4	53.4	53.4	71.3	71.3	71.3
9.7	22.4	22.4	22.4	22.4	22.4	22.4	33.6	33.6	33.6	33.6	44.8	44.8	44.8
4.9	17	17	17	17	17	17	17	17	17	17	17	17	17
210	307	328	290	276	262	155	237	228	204	189	237	152	140
132	193	206	184	174	165	101	149	143	128	119	149	99	92
128	219	219	202	195	187	106	167	167	146	139	177	114	106
80	138	138	127	122	118	69	105	105	92	87	111	74	70
0.15	0.26	0.25	0.27	0.3	0.3	0.38	0.4	0.39	0.47	0.48	0.52	0.63	0.67

公稱直徑
d

D
d₀
L₀
L
L₁
L₂
D₁
D₂
A—軸向力 /KN
B—軸向力 /KN
A—轉矩 /KN·m
B—轉矩 /KN·m
螺釘的擰緊力矩/N·m
A—脹套與軸結合面上的壓力N/mm²
B—脹套與軸結合面上的壓力N/mm²
A—脹套與輪毂結合面上的壓力N/mm²
B—脹套與輪毂結合面上的壓力N/mm²
單重≈kg

53	55	59	62	65	71	77	84	90	95	100	106	112
61	63	69.5	71.5	75.5	81.5	87.5	94.5	101.5	107	112.5	118.5	124.5
45	45	64	64	64	74	74	74	87	87	87	87	87
32	32	45	45	45	55	55	55	65	65	65	65	65
52	52	72	72	72	82	82	82	97	97	97	97	97
58	58	80	80	80	90	90	90	107	107	107	107	107
75	78	86	87	92	98	104	111	119	126	131	137	144
69	71	80	81	86	92	98	105	113	119	125	131	137
1287	1352	2677	2855	2975	3680	4015	4350	7440	7970	11335	12040	12750
840	881	1745	1860	1940	2400	2620	2840	4850	5200	7390	7850	8320
71.3	71.3	119	119	119	133	133	133	212	212	283	283	283
44.8	44.8	77.6	77.6	77.6	87.2	87.2	87.2	139	139	184	184	184
17	17	41	41	41	41	41	41	83	83	83	83	83
133	127	155	145	140	117	107	100	123	114	144	135	128
87	82	102	95	92	77	70	65	81	75	94	88	83
100	102	119	113	108	91	84	77	96	91	115	108	102
66	66	78	74	70	60	55	55	63	59	75	71	67
0.74	0.78	1.23	1.24	1.4	1.7	1.9	2.2	3.05	3.32	3.5	3.81	4.2

①,Z11型脹緊聯結套螺釘的機械性能等級為12.9級。

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
