Z20型脹緊聯結套 JB /T 7934 - 1999

選擇規格尺寸點擊↓

100

110

120

140

160

同規格，其他部分尺寸不同

尺寸單位: mm

機械行業JB /T7934 - 1999 JB7934 7934JB Z20型脹緊聯結套

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

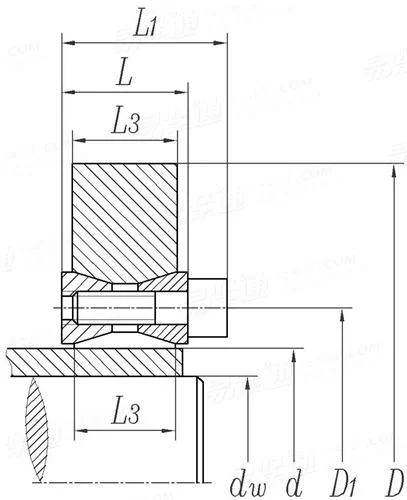

公稱直徑
d

d_w
D
D₁
L₁
L
L₃
額定負荷-轉矩/KN·m
額定負荷-軸向力/KN
内六角螺釘 d1
内六角螺釘 n
螺釘的擰緊力矩/N·m
單重≈kg

18	20	20	22	24	25	28	30	30	32	34	35	35
60	60	65	65	65	72	72	72	78	78	78	78	92
37.5	37.5	42.5	42.5	42.5	47.5	47.5	47.5	52.5	52.5	52.5	52.5	60
27.5	27.5	27.5	27.5	27.5	27.5	27.5	27.5	27.5	27.5	27.5	27.5	33.5
20	20	20	20	20	20	20	20	20	20	20	20	24
17	17	17	17	17	17	17	17	17	17	17	17	20
0.19	0.255	0.205	0.27	0.34	0.365	0.49	0.585	0.555	0.59	0.71	0.77	0.96
21	25	20	24	28	29	35	39	37	37	42	44	55
M6×18	M6×18	M6×18	M6×18	M6×18	M6×18	M6×18	M6×18	M6×18	M6×18	M6×18	M6×18	M8×22
9	9	9	9	9	12	12	12	15	15	15	15	12
17	17	17	17	17	17	17	17	17	17	17	17	41
0.37	0.37	0.42	0.42	0.42	0.48	0.48	0.48	0.54	0.54	0.54	0.54	0.92

公稱直徑
d

d_w
D
D₁
L₁
L
L₃
額定負荷-轉矩/KN·m
額定負荷-軸向力/KN
内六角螺釘 d1
内六角螺釘 n
螺釘的擰緊力矩/N·m
單重≈kg

36	38	38	40	42	42	45	48	48	50	52	55	58
92	92	98	98	98	105	105	105	110	110	110	138	138
60	60	65	65	65	70	70	70	75	75	75	90	90
33.5	33.5	33.5	33.5	33.5	33.5	33.5	33.5	33.5	33.5	33.5	39.5	39.5
24	24	24	24	24	24	24	24	24	24	24	28	28
20	20	20	20	20	20	20	20	20	20	20	24	24
1.03	1.2	1.01	1.16	1.32	1.33	1.59	1.88	1.6	1.78	1.89	2.93	3.37
57	63	53	58	63	63	70	78	67	71	73	106	116
M8×22	M8×22	M8×22	M8×22	M8×22	M8×22	M8×22	M8×22	M8×22	M8×22	M8×22	M10×25	M10×25
12	12	12	12	12	14	14	14	14	14	14	14	14
41	41	41	41	41	41	41	41	41	41	41	83	83
0.92	0.92	1	1	1	1.1	1.1	1.1	1.2	1.2	1.2	2.3	2.3

公稱直徑
d

100

110

d_w
D
D₁
L₁
L
L₃
額定負荷-轉矩/KN·m
額定負荷-軸向力/KN
内六角螺釘 d1
内六角螺釘 n
螺釘的擰緊力矩/N·m
單重≈kg

60	62	65	68	70	70	75	78	78	80	82	85	85
138	145	145	145	145	160	160	160	180	180	180	180	190
90	100	100	100	100	110	110	110	122.5	122.5	122.5	122.5	132.5
39.5	39.5	39.5	39.5	39.5	39.5	39.5	39.5	47	47	47	47	47
28	28	28	28	28	28	28	28	33	33	33	33	33
24	24	24	24	24	24	24	24	26	26	26	26	26
3.69	3.14	3.57	4.02	4.35	4.09	4.89	5.42	5.98	6.37	6.49	7.16	6.18
123	101	110	118	124	117	130	139	153	159	158	168	145
M10×25	M10×25	M10×25	M10×25	M10×25	M10×25	M10×25	M10×25	M12×30	M12×30	M12×30	M12×30	M12×30
14	14	14	14	14	16	16	16	14	14	14	14	14
83	83	83	83	83	83	83	83	145	145	145	145	145
2.3	2.4	2.4	2.4	2.4	2.8	2.8	2.8	3.8	3.8	3.8	3.8	4.1

公稱直徑
d

110

120

140

160

d_w
D
D₁
L₁
L
L₃
額定負荷-轉矩/KN·m
額定負荷-軸向力/KN
内六角螺釘 d1
内六角螺釘 n
螺釘的擰緊力矩/N·m
單重≈kg

88	90	95	95	100	105	110	115	120	125	130	135	140
190	190	190	205	205	205	230	230	230	260	260	260	260
132.5	132.5	132.5	142.5	142.5	142.5	165	165	165	185	185	185	185
47	47	47	47	47	47	52	52	52	52	52	52	52
33	33	33	33	33	33	38	38	38	38	38	38	38
26	26	26	26	26	26	34	34	34	34	34	34	34
6.8	7.24	8.38	8.25	9.45	10.74	12.86	14.44	16.14	17.13	18.99	20.94	23
154	160	176	173	189	204	233	251	269	274	292	310	328
M12×30	M12×30	M12×30	M12×30	M12×30	M12×30	M12×35	M12×35	M12×35	M12×35	M12×35	M12×35	M12×35
14	14	14	16	16	16	22	22	22	26	26	26	26
145	145	145	145	145	145	145	145	145	145	145	145	145
4.1	4.1	4.1	4.7	4.7	4.7	7.4	7.4	7.4	9.2	9.2	9.2	9.2

①,Z20型脹緊聯結套螺釘的機械性能等級為12.9級。

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
