首頁 產品與标準 BS 4464 - 1969 D型 雙層彈簧墊圈

D型 雙層彈簧墊圈 BS 4464 - 1969

選擇規格尺寸 點擊↓

M2

(M2.2)

M2.5

M3

(M3.5)

M4

M5

M6

M8

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

M48

M56

M64

括号内尺寸為非優選

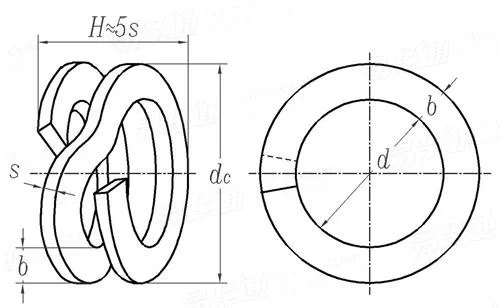

BS 4464 - 1969 D型 雙層彈簧墊圈

尺寸單位: mm
英标BS 4464 - 1969 BS4464 4464BS D型 雙層彈簧墊圈
BS 4464 - 1969 D型 雙層彈簧墊圈
掃一掃分享
公差
使用在
M2 (M2.2) M2.5 M3 (M3.5) M4 M5 M6 M8 M10 M12 (M14) M16
d 最大值
最小值
s 公稱
最大值
最小值
dc 最大值
b 公稱
最大值
最小值
H ≈5s
2.4 2.6 2.9 3.6 4.1 4.6 5.6 6.6 8.8 10.8 12.8 15 17
2.1 2.3 2.6 3.3 3.8 4.3 5.3 6.3 8.4 10.4 12.4 14.5 16.5
0.5 0.6 0.7 0.8 0.8 0.8 0.9 1 1.2 1.2 1.6 1.6 2
0.55 0.65 0.8 0.9 0.9 0.9 1 1.1 1.3 1.3 1.7 1.7 2.1
0.45 0.55 0.6 0.7 0.7 0.7 0.8 0.9 1.1 1.1 1.5 1.5 1.9
4.4 4.8 5.5 6.2 7.5 8 9.8 12.9 15.1 18.2 20.2 25.4 27.4
0.9 1.0 1.2 1.2 1.6 1.6 2 3 3 3.5 3.5 5 5
1.0 1.1 1.3 1.3 1.7 1.7 2.1 3.15 3.15 3.7 3.7 5.2 5.2
0.8 0.9 1.1 1.1 1.5 1.5 1.9 2.85 2.85 3.3 3.3 4.8 4.8
2.5 3 3.5 4 4 4 4.5 5 6 6 8 8 10
使用在
(M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39) M42 M48 M56 M64
d 最大值
最小值
s 公稱
最大值
最小值
dc 最大值
b 公稱
最大值
最小值
H ≈5s
19 21.5 23.5 26 29.5 33 36 40 43 46 52 60 70
18.5 20.8 22.8 25 28 31.5 34.5 38 41 44 50 58 67
2 2 2.5 3.25 3.25 3.25 3.25 3.25 3.25 4.5 4.5 4.5 4.5
2.1 2.1 2.65 3.4 3.4 3.4 3.4 3.4 3.4 4.7 4.7 4.7 4.7
1.9 1.9 2.35 3.1 3.1 3.1 3.1 3.1 3.1 4.3 4.3 4.3 4.3
29.4 31.9 35.9 39.4 44 49.5 52.5 60.5 63.5 66.5 72.5 84.5 94.5
5 5 6 6.5 7 8 8 10 10 10 10 12 12
5.2 5.2 6.2 6.7 7.25 8.25 8.25 10.25 10.25 10.25 10.25 12.25 12.25
4.8 4.8 5.8 6.3 6.75 7.75 7.75 9.75 9.75 9.75 9.75 11.75 11.75
10 10 12.5 16.25 16.25 16.25 16.25 16.25 16.25 22.5 22.5 22.5 22.5

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 3103.3 - 2020
緊固件公差 平墊圈
注：技術數據僅供參考，請以官方原件為準！
