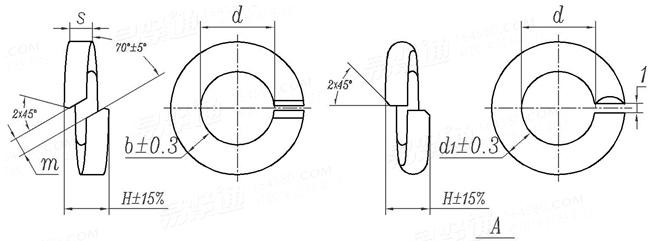

道岔用彈簧墊圈 TB /T 418 - 1975

選擇規格尺寸 點擊↓

22

24

27

TB /T 418 - 1975 道岔用彈簧墊圈

尺寸單位: mm
鐵道部TB /T418 - 1975 TB418 418TB 道岔用彈簧墊圈
TB /T 418 - 1975 道岔用彈簧墊圈
掃一掃分享
單重計算 公差
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
×

選擇材料對應密度(g/cm3)

  • 碳鋼 7.85
  • 不鏽鋼 8.1
  • 不鏽鋼 7.95
  • 不鏽鋼 7.7
  • 钛合金 4.5
  • 鋁合金 2.8
  • 銅 8.89


在此選擇或在計算頁輸入材料密度 密度表
公稱直徑
22 24 27
d 公稱
最大值
最小值
s ±0.2
b ±0.3
H
d1
m ≤ (且大于0)
千件重g 方形斷面
圓形斷面
24 26 29
25 27 30
23 25 28
5 6 6
5 6 6
14 18 18
8 9 9
3.8 4.4 4.7
17.9 28.4 31.1
39.7 54.9 59.6
①,本标準适用于每米43、50公斤鋼軌道岔用彈簧墊圈。
②,材料采用 55Si2Mn；代用材料 55SiMn，65Mn，YB8-59。
③,技術條件按 GB 94-67。

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 3103.3 - 2020
緊固件公差 平墊圈
注：技術數據僅供參考，請以官方原件為準！
