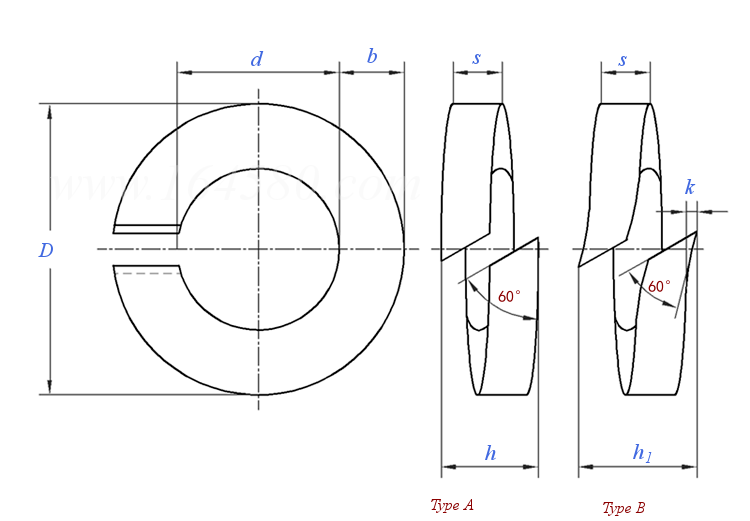

彈簧墊圈 UNI 1751 - 1941

選擇規格尺寸點擊↓

2.2

2.5

2.8

3.2

3.7

4.3

4.8

5.3

6.4

6.7

7.4

8.4

9.5

10.5

13.5

26.5

尺寸單位: mm

模型下載

掃一掃分享

單重計算公差

規格

2.2

2.5

2.8

3.2

3.7

4.3

4.8

5.3

6.4

6.7

7.4

8.4

9.5

d	公稱
	最大值
	最小值
b	公稱
	最大值
	最小值
s	公稱
	最大值
	最小值
D
h	公稱
	最大值
	最小值
h₁	公稱
	最大值
	最小值
k

2.2	2.5	2.8	3.2	3.7	4.3	4.8	5.3	6.4	6.7	7.4	8.4	9.5
2.4	2.7	3	3.4	3.9	4.5	5	5.5	6.6	6.9	7.6	8.6	9.8
2.1	2.4	2.7	3.1	3.6	4.2	4.7	5.2	6.3	6.6	7.3	8.3	9.3
0.9	1	1	1.3	1.3	1.5	1.8	1.8	2.5	2.5	2.5	3	3
1	1.1	1.1	1.4	1.4	1.6	1.9	1.9	2.65	2.65	2.65	3.15	3.15
0.8	0.9	0.9	1.2	1.2	1.4	1.7	1.7	2.35	2.35	2.35	2.85	2.85
0.5	0.6	0.8	0.8	0.8	0.9	1.2	1.2	1.6	1.6	1.6	2	2
0.6	0.7	0.9	0.9	0.9	1	1.3	1.3	1.7	1.7	1.7	2.1	2.1
0.4	0.5	0.7	0.7	0.7	0.8	1.1	1.1	1.5	1.5	1.5	1.9	1.9
4	4.5	4.8	5.8	6.3	7.3	8.4	8.9	11.4	11.7	12.4	14.4	15.5
1	1.2	1.2	1.6	1.6	1.8	2.4	2.4	3.2	3.2	3.2	4	4
1.15	1.4	1.4	1.85	1.85	2.1	2.75	2.75	3.7	3.7	3.7	4.6	4.6
0.85	1	1	1.35	1.35	1.5	2.05	2.05	2.7	2.7	2.7	3.4	3.4
/	/	/	/	1.9	2.1	2.7	2.7	3.6	3.6	3.7	4.6	4.6
/	/	/	/	2.2	2.4	3.1	3.1	4.15	4.15	4.25	5.3	5.3
/	/	/	/	1.6	1.8	2.3	2.3	3.05	3.05	3.15	3.9	3.9
/	/	/	/	0.15	0.15	0.15	0.15	0.2	0.2	0.25	0.3	0.3

規格

10.5

13.5

26.5

d	公稱
	最大值
	最小值
b	公稱
	最大值
	最小值
s	公稱
	最大值
	最小值
D
h	公稱
	最大值
	最小值
h₁	公稱
	最大值
	最小值
k

10	10.5	13	13.5	15	17	19	20	21	23	25	26.5	28
10.3	10.8	13.3	13.8	15.3	17.3	19.5	20.5	21.5	23.5	25.5	27	28.5
9.8	10.3	12.5	13	14.5	16.5	18.5	19.5	20.5	22.5	24.5	26	27.5
3.5	3.5	4	4	4.5	5	5	6	6	6	7	7	7
3.7	3.7	4.2	4.2	4.7	5.2	5.2	6.2	6.2	6.2	7.25	7.25	7.25
3.3	3.3	3.8	3.8	4.3	4.8	4.8	5.8	5.8	5.8	6.75	6.75	6.75
2.2	2.2	2.5	2.5	3	3.5	3.5	4	4	4	5	5	5
2.35	2.35	2.65	2.65	3.15	3.7	3.7	4.2	4.2	4.2	5.2	5.2	5.2
2.05	2.05	2.35	2.35	2.85	3.3	3.3	3.8	3.8	3.8	4.8	4.8	4.8
17	17.5	21	21.5	24	27	29	32	33	35	39	40.5	42
4.4	4.4	5	5	6	7	7	8	8	8	10	10	10
5.05	5.05	5.75	5.75	6.9	8.05	8.05	9.2	9.2	9.2	11.5	11.5	11.5
3.75	3.75	4.25	4.25	5.1	5.95	5.95	6.8	6.8	6.8	8.5	8.5	8.5
5	5	5.8	5.8	6.8	7.8	7.8	9	9	9	11	11.2	11.2
5.75	5.75	6.65	6.65	7.8	8.95	8.95	10.35	10.35	10.35	12.65	12.9	12.9
4.25	4.25	4.95	4.95	5.8	6.65	6.65	7.65	7.65	7.65	9.35	9.5	9.5
0.3	0.3	0.4	0.4	0.4	0.4	0.4	0.5	0.5	0.5	0.5	0.6	0.6

規格

d	公稱
	最大值
	最小值
b	公稱
	最大值
	最小值
s	公稱
	最大值
	最小值
D
h	公稱
	最大值
	最小值
h₁	公稱
	最大值
	最小值
k

30	31	33	34	36	37	40	43	46	50	53	54
30.8	31.8	33.8	34.8	36.8	37.8	40.8	43.8	46.8	50.8	53.8	54.8
29.5	30.5	32.5	33.5	35.5	36.5	39.5	42.5	45.5	49.3	52.3	53.3
8	8	10	10	10	10	10	12	12	12	14	14
8.25	8.25	10.25	10.25	10.25	10.25	10.25	12.25	12.25	12.25	14.25	14.25
7.75	7.75	9.75	9.75	9.75	9.75	9.75	11.75	11.75	11.75	13.75	13.75
6	6	6	6	6	6	6	7	7	7	8	8
6.2	6.2	6.2	6.2	6.2	6.2	6.2	7.25	7.25	7.25	8.25	8.25
5.8	5.8	5.8	5.8	5.8	5.8	5.8	6.75	6.75	6.75	7.75	7.75
46	47	53	54	56	57	60	67	70	74	81	82
12	12	12	12	12	12	12	14	14	14	16	16
13.8	13.8	13.8	13.8	13.8	13.8	13.8	16.1	16.1	16.1	18.4	18.4
10.2	10.2	10.2	10.2	10.2	10.2	10.2	11.9	11.9	11.9	13.6	13.6
13.2	13.2	13.6	13.6	13.6	13.6	13.6	15.6	15.6	15.6	18	18
15.2	15.2	15.6	15.6	15.6	15.6	15.6	18	18	18	20.7	20.7
11.2	11.2	11.6	11.6	11.6	11.6	11.6	13.2	13.2	13.2	15.3	15.3
0.6	0.6	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1	1

替代列表

暫無

等效标準

德标 DIN	意大利 UNI
DIN 127(B)	UNI 1751

以上有部分标準可能為近似等效，如有異議以标準原件為準

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3103.3 - 2020

緊固件公差平墊圈

注：技術數據僅供參考，請以官方原件為準！
