标準型彈簧墊圈 SAE J 2655 - 2015

選擇規格尺寸點擊↓

10#

12#

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-5/8

1-3/4

1-7/8

2-1/4

2-1/2

2-3/4

尺寸單位: inch

美标SAE J2655 - 2015 SAE2655 2655SAE 标準型彈簧墊圈

掃一掃分享

單重計算公差

規格

10#

12#

1/4

5/16

3/8

7/16

1/2

9/16

5/8

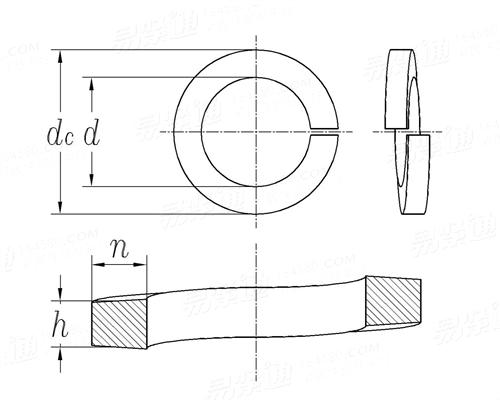

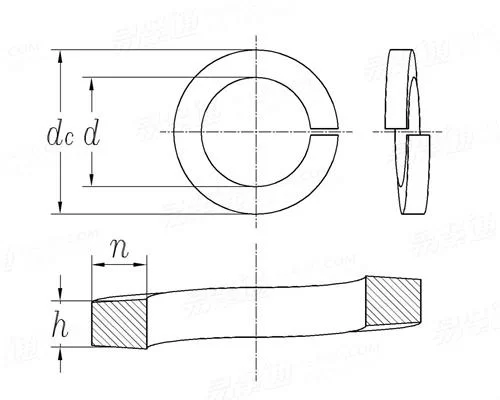

d	公稱
	最大值
	最小值
d_c	最大值
h	最小值
n	最小值

0.0860	0.0990	0.1120	0.1250	0.1380	0.1640	0.1900	0.2160	0.2500	0.3125	0.3750	0.4375	0.5000	0.5625	0.6250
0.094	0.107	0.120	0.133	0.148	0.174	0.200	0.227	0.260	0.322	0.385	0.450	0.512	0.574	0.641
0.088	0.101	0.114	0.127	0.141	0.167	0.193	0.220	0.252	0.314	0.377	0.440	0.502	0.564	0.628
0.172	0.195	0.209	0.236	0.250	0.293	0.334	0.377	0.487	0.583	0.680	0.776	0.869	0.965	1.073
0.020	0.025	0.025	0.031	0.031	0.040	0.047	0.056	0.062	0.078	0.094	0.109	0.125	0.141	0.156
0.035	0.040	0.040	0.047	0.047	0.055	0.062	0.070	0.109	0.125	0.141	0.156	0.171	0.188	0.203

規格

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-5/8

1-3/4

1-7/8

2-1/4

2-1/2

2-3/4

d	公稱
	最大值
	最小值
d_c	最大值
h	最小值
n	最小值

0.7500	0.8750	1.0000	1.1250	1.2500	1.3750	1.5000	1.6250	1.7500	1.8750	2.0000	2.2500	2.5000	2.7500	3.0000
0.766	0.894	1.024	1.153	1.280	1.408	1.534	1.663	1.789	1.914	2.039	2.293	2.543	2.793	3.043
0.753	0.878	1.003	1.129	1.254	1.379	1.504	1.633	1.758	1.883	2.008	2.262	2.512	2.762	3.012
1.265	1.459	1.656	1.847	2.036	2.219	2.419	2.553	2.679	2.811	2.936	3.221	3.471	3.824	4.074
0.188	0.219	0.250	0.281	0.312	0.344	0.375	0.389	0.389	0.422	0.422	0.440	0.440	0.458	0.458
0.234	0.266	0.297	0.328	0.359	0.391	0.422	0.424	0.424	0.427	0.427	0.442	0.442	0.491	0.491

采用标準

ASME/ANSI B 18.21.1 - 2009

彈簧墊圈 - 标準型 [Table 1] (SAE J403, J411, J405, J404, ASTM B211, B159, B99, QQ-N-286)

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3103.3 - 2020

緊固件公差平墊圈

注：技術數據僅供參考，請以官方原件為準！
