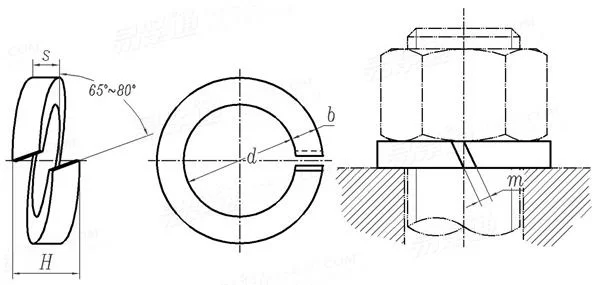

專用彈簧墊圈 - 标準型不鏽鋼墊圈 QJ 2963.2 - 1997

選擇規格尺寸 點擊↓

2

2.5

3

4

5

6

8

10

12

14

16

18

20

22

24

27

QJ 2963.2 - 1997 專用彈簧墊圈 - 标準型不鏽鋼墊圈

尺寸單位: mm
航天QJ 2963.2 - 1997 QJ2963.2 2963.2QJ 專用彈簧墊圈 - 标準型不鏽鋼墊圈
QJ 2963.2 - 1997 專用彈簧墊圈 - 标準型不鏽鋼墊圈
掃一掃分享
單重計算 公差
規格
2 2.5 3 4 5 6 8 10
d 最小值
最大值
s 公稱
最小值
最大值
H 最小值
最大值
m 最大值
2.1 2.6 3.1 4.1 5.1 6.1 8.1 10.2
2.35 2.85 3.4 4.4 5.4 6.68 8.68 10.9
0.5 0.65 0.8 1.1 1.3 1.6 2.1 2.6
0.42 0.57 0.7 1 1.2 1.5 2 2.45
0.58 0.73 0.9 1.2 1.4 1.7 2.2 2.75
1 1.3 1.6 2.2 2.6 3.2 4.2 5.2
1.25 1.63 2 2.75 3.25 4 5.25 6.5
0.25 0.33 0.4 0.55 0.65 0.8 1.05 1.3
規格
12 14 16 18 20 22 24 27
d 最小值
最大值
s 公稱
最小值
最大值
H 最小值
最大值
m 最大值
12.2 14.2 16.2 18.2 20.2 22.5 24.5 27.5
12.9 14.9 16.9 19.04 21.04 23.34 25.5 28.5
3.1 3.6 4.1 4.5 5 5.5 6 6.8
2.95 3.4 3.9 4.3 4.8 5.3 5.8 6.5
3.25 3.8 4.3 4.7 5.2 5.7 6.2 7.1
6.2 7.2 8.2 9 10 11 12 13.6
7.75 9 10.25 11.25 12.5 13.75 15 17
1.55 1.8 2.05 2.25 2.5 2.75 3 3.4
①,彈簧墊圈截面的内外圓角半徑應不大于S/4。

相關材料标準或牌号

GB /T 1220-1992
牌号

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 3103.3 - 2020
緊固件公差 平墊圈
注：技術數據僅供參考，請以官方原件為準！
