B型 米制彈簧墊圈 BS 4464 - 1969

選擇規格尺寸 點擊↓

M1.6

M2

(M2.2)

M2.5

M3

(M3.5)

M4

M5

M6

M8

M10

M12

(M14)

M16

(M18)

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

(M45)

M48

(M52)

M56

(M60)

M64

(M68)

括号内尺寸為非優選

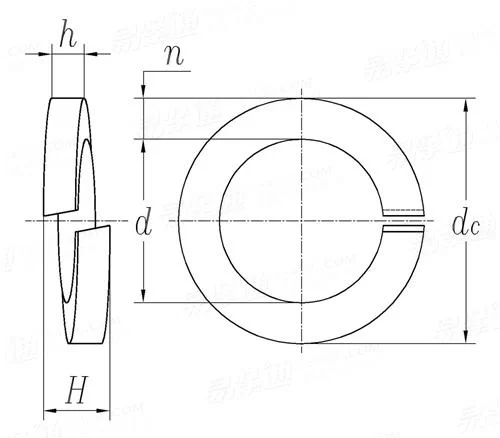

BS 4464 - 1969 B型 米制彈簧墊圈

尺寸單位: mm
英标BS 4464 - 1969 BS4464 4464BS B型 米制彈簧墊圈
BS 4464 - 1969 B型 米制彈簧墊圈
掃一掃分享
單重計算 公差
規格
M1.6 M2 (M2.2) M2.5 M3 (M3.5) M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20
d 最大值
最小值
n 公稱
最大值
最小值
h 公稱
最大值
最小值
dc 最大值
1.9 2.3 2.5 2.8 3.3 3.8 4.35 5.35 6.4 8.55 10.6 12.6 14.7 16.9 19 21.1
1.7 2.1 2.3 2.6 3.1 3.6 4.1 5.1 6.1 8.2 10.2 12.2 14.2 16.3 18.3 20.3
0.7 0.9 1 1 1.3 1.3 1.5 1.8 2.5 3 3.5 4 4.5 5 5 6
0.8 1 1.1 1.1 1.4 1.4 1.6 1.9 2.65 3.15 3.7 4.2 4.7 5.2 5.2 6.2
0.6 0.8 0.9 0.9 1.2 1.2 1.4 1.7 2.35 2.85 3.3 3.8 4.3 4.8 4.8 5.8
0.4 0.5 0.6 0.6 0.8 0.8 0.9 1.2 1.6 2 2.2 2.5 3 3.5 3.5 4
0.5 0.6 0.7 0.7 0.9 0.9 1 1.3 1.7 2.1 2.35 2.65 3.15 3.7 3.7 4.2
0.3 0.4 0.5 0.5 0.7 0.7 0.8 1.1 1.5 1.9 2.05 2.35 2.85 3.3 3.3 3.8
3.5 4.3 4.7 5 6.1 6.6 7.55 9.15 11.7 14.85 18 21 24.1 27.3 29.4 33.5
規格
(M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45) M48 (M52) M56 (M60) M64 (M68)
d 最大值
最小值
n 公稱
最大值
最小值
h 公稱
最大值
最小值
dc 最大值
23.3 25.3 28.5 31.5 34.6 37.6 40.8 43.8 46.8 50 54.1 58.1 62.3 66.3 70.5
22.4 24.4 27.5 30.5 33.5 36.5 39.6 42.6 45.6 48.8 52.8 56.8 60.9 64.9 69
6 7 7 8 10 10 10 12 12 12 14 14 14 14 14
6.2 7.25 7.25 8.25 10.25 10.25 10.25 12.25 12.25 12.25 14.25 14.25 14.25 14.25 14.25
5.8 6.75 6.75 7.75 9.75 9.75 9.75 11.75 11.75 11.75 13.75 13.75 13.75 13.75 13.75
4 5 5 6 6 6 6 7 7 7 8 8 8 8 8
4.2 5.2 5.2 6.25 6.25 6.25 6.25 7.25 7.25 7.25 8.25 8.25 8.25 8.25 8.25
3.8 4.8 4.8 5.75 5.75 5.75 5.75 6.75 6.75 6.75 7.75 7.75 7.75 7.75 7.75
35.7 39.8 43 48 55.1 58.1 61.3 68.3 71.3 74.5 82.6 86.6 90.8 93.8 99
①,H=2h±15%

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 3103.3 - 2020
緊固件公差 平墊圈
注：技術數據僅供參考，請以官方原件為準！
