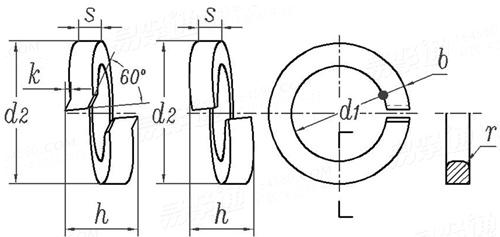

彈簧墊圈 A型和B型 IS 3063 - 1994 (R2004)

選擇規格尺寸點擊↓

2.2

2.5

(3.5)

(7)

(14)

(18)

(22)

(27)

(33)

(39)

(45)

100

括号内尺寸為非優選

尺寸單位: mm

印标IS 3063 - 1994 (R2004) IS3063 3063IS 彈簧墊圈 A型和B型

掃一掃分享

單重計算公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

規格

2.2

2.5

(3.5)

(7)

d₁	最小值=公稱
	最大值
d₂	最大值
b	公稱
	最小值
	最大值
s	公稱
	最小值
	最大值
r	公稱
k
h	A型	最小值
		最大值
	B型	最小值
		最大值
适用螺釘及螺母規格
千件重(鋼制)≈kg

2.1	2.3	2.6	3.1	3.6	4.1	5.1	6.1	7.1	8.1	10.2	12.2
2.4	2.6	2.9	3.4	3.9	4.4	5.4	6.5	7.5	8.5	10.7	12.7
4.4	4.8	5.1	6.2	6.7	7.6	9.2	11.8	12.8	14.8	18.1	21.1
0.9	1	1	1.3	1.3	1.5	1.8	2.5	2.5	3	3.5	4
0.8	0.9	0.9	1.2	1.2	1.4	1.7	2.35	2.35	2.85	3.3	3.8
1	1.1	1.1	1.4	1.4	1.6	1.9	2.65	2.65	3.15	3.7	4.2
0.5	0.6	0.6	0.8	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5
0.4	0.5	0.5	0.7	0.7	0.8	1.1	1.5	1.5	1.9	2.05	2.35
0.6	0.7	0.7	0.9	0.9	1	1.3	1.7	1.7	2.1	2.35	2.65
0.1	0.1	0.1	0.2	0.2	0.2	0.2	0.3	0.3	0.5	0.5	1
/	/	/	0.15	0.15	0.15	0.15	0.2	0.2	0.3	0.3	0.4
/	/	/	1.9	1.9	2.1	2.7	3.6	3.6	4.6	5	5.8
/	/	/	2.1	2.2	2.5	3.2	4.2	4.2	5.4	5.9	6.8
1	1.2	1.2	1.6	1.6	1.8	2.4	3.2	3.2	4	4.4	5
1.2	1.4	1.4	1.9	1.9	2.1	2.8	3.8	3.8	4.7	5.2	5.9
2	2.2	2.5	3	3.5	4	5	6	7	8	10	12
0.033	0.05	0.053	0.11	0.12	0.18	0.36	0.83	0.93	1.6	2.53	3.82

規格

(14)

(18)

(22)

(27)

(33)

(39)

d₁	最小值=公稱
	最大值
d₂	最大值
b	公稱
	最小值
	最大值
s	公稱
	最小值
	最大值
r	公稱
k
h	A型	最小值
		最大值
	B型	最小值
		最大值
适用螺釘及螺母規格
千件重(鋼制)≈kg

14.2	16.2	18.2	20.2	22.5	24.5	27.5	30.5	33.5	36.5	39.5	42.5
14.7	17	19	21.2	23.5	25.5	28.5	31.7	34.7	37.7	40.7	43.7
24.1	27.4	29.4	33.6	35.9	40	43	48.2	55.2	58.2	61.2	68.2
4.5	5	5	6	6	7	7	8	10	10	10	12
4.3	4.8	4.8	5.8	5.8	6.75	6.75	7.75	9.75	9.75	9.75	11.75
4.7	5.2	5.2	6.2	6.2	7.25	7.25	8.25	10.25	10.25	10.25	12.25
3	3.5	3.5	4	4	5	5	6	6	6	6	7
2.85	3.3	3.3	3.8	3.8	4.8	4.8	5.8	5.8	5.8	5.8	6.75
3.15	3.7	3.7	4.2	4.2	5.2	5.2	6.2	6.2	6.2	6.2	7.25
1	1	1	1	1	1.6	1.6	1.6	1.6	1.6	1.6	2
0.4	0.4	0.4	0.4	0.4	0.5	0.5	0.8	0.8	0.8	0.8	0.8
6.8	7.8	7.8	8.8	8.8	11	11	13.6	13.6	13.6	13.6	15.6
8	9.2	9.2	10.4	10.4	13	13	16.1	16.1	16.1	16.1	18.4
6	7	7	8	8	10	10	12	12	12	12	14
7.1	8.3	8.3	9.4	9.4	11.8	11.8	14.2	14.2	14.2	14.2	16.5
14	16	18	20	22	24	27	30	33	36	39	42
6.01	8.91	9.73	15.2	16.5	26.2	28.7	44.3	63	67.3	71.7	111

規格

(45)

100

d₁	最小值=公稱
	最大值
d₂	最大值
b	公稱
	最小值
	最大值
s	公稱
	最小值
	最大值
r	公稱
k
h	A型	最小值
		最大值
	B型	最小值
		最大值
适用螺釘及螺母規格
千件重(鋼制)≈kg

45.5	49	53	57	61	65	69	73	81	91	101
46.7	50.5	54.5	58.5	62.5	66.5	70.5	74.5	82.5	92.5	102.5
71.2	75	83	87	91	95	99	103	111	121	131
12	12	14	14	14	14	14	14	14	14	14
11.75	11.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75	13.75
12.25	12.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25	14.25
7	7	8	8	8	8	8	8	8	8	8
6.75	6.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75	7.75
7.25	7.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25	8.25
2	2	2	2	2	2	2	2	2	2	2
0.8	0.8	1	1	1	1	1	1	1	1	1
13.6	15.6	18	18	18	18	18	18	18	18	18
18.4	18.4	21.2	21.2	21.2	21.2	21.2	21.2	21.2	21.2	21.2
14	14	16	16	16	16	16	16	16	16	16
16.5	16.5	18.9	18.9	18.9	18.9	18.9	18.9	18.9	18.9	18.9
45	48	52	56	60	64	68	72	80	90	100
117	123	182	193	203	218	228	240	262	290	318

采用标準

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3103.3 - 2020

緊固件公差平墊圈

注：技術數據僅供參考，請以官方原件為準！
