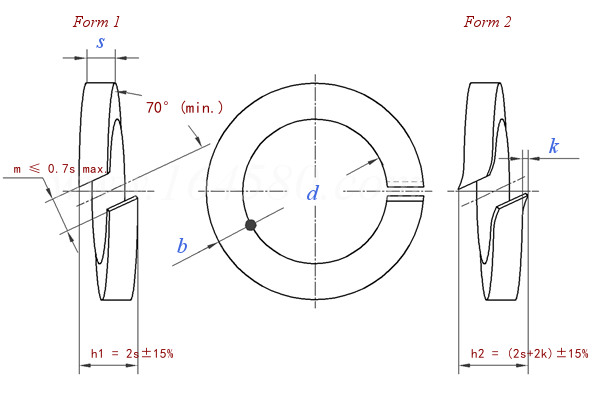

彈簧墊圈 GOST 6402 - 1970 (R1982)

選擇規格尺寸點擊↓

2.5

(3)

3.5

(4)

(5)

(6)

(8)

(10)

(14)

(16)

(18)

(20)

(22)

(24)

(27)

(30)

(36)

(42)

(48)

同規格，其他部分尺寸不同

括号内尺寸為非優選

尺寸單位: mm

俄标GOST 6402 - 1970 (R1982) GOST6402 6402 彈簧墊圈

掃一掃分享

單重計算公差

規格

2.5

(3)

3.5

(4)

(5)

(6)

(8)

d	最小值
	最大值
s	輕型(JI)	公稱
		最大值
		最小值
b	輕型(JI)	公稱
		最大值
		最小值
	标準H (b=s)	公稱
		最大值
		最小值
	重型T (b=s)	公稱
		最大值
		最小值
	特重OT (b=s)	公稱
		最大值
		最小值
k	JI型和 H型

2.1	2.6	3.1	3.1	3.6	4.1	4.1	5.1	5.1	6.1	6.1	7.2	8.2	8.2
2.35	2.85	3.4	3.4	3.9	4.4	4.4	5.4	5.4	6.68	6.68	7.78	8.78	8.78
0.5	0.6	0.6	0.8	0.8	0.8	1	1	1.2	1.2	1.4	1.6	1.6	1.6
0.57	0.67	0.67	0.88	0.88	0.88	1.125	1.125	1.325	1.325	1.525	1.725	1.725	1.725
0.43	0.53	0.53	0.72	0.72	0.72	0.875	0.875	1.075	1.075	1.275	1.475	1.475	1.475
0.8	0.8	1	1	1	1.2	1.4	1.2	1.6	1.6	2	2	2	2.5
0.88	0.88	1.125	1.125	1.125	1.325	1.525	1.325	1.725	1.725	2.125	2.125	2.125	2.625
0.72	0.72	0.875	0.875	0.875	1.075	1.275	1.075	1.475	1.475	1.875	1.875	1.875	2.375
0.5	0.6	0.8	0.8	1	1	1.2	1.2	1.4	1.4	1.6	2	2	2
0.57	0.67	0.88	0.88	1.125	1.125	1.325	1.325	1.525	1.525	1.725	2.125	2.125	2.125
0.43	0.53	0.72	0.72	0.875	0.875	1.075	1.075	1.275	1.275	1.475	1.875	1.875	1.875
0.6	0.8	1	1	/	1.4	1.4	1.6	1.6	2	2	/	2.5	2.5
0.67	0.88	1.125	1.125	/	1.525	1.525	1.725	1.725	2.125	2.125	/	2.625	2.625
0.53	0.72	0.875	0.875	/	1.275	1.275	1.475	1.475	1.875	1.875	/	2.375	2.375
/	/	/	/	/	/	/	/	/	/	/	/	/	/
/	/	/	/	/	/	/	/	/	/	/	/	/	/
/	/	/	/	/	/	/	/	/	/	/	/	/	/
/	/	/	/	0.15	0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.3	0.3

規格

(10)

(14)

(16)

(18)

(20)

(22)

d	最小值
	最大值
s	輕型(JI)	公稱
		最大值
		最小值
b	輕型(JI)	公稱
		最大值
		最小值
	标準H (b=s)	公稱
		最大值
		最小值
	重型T (b=s)	公稱
		最大值
		最小值
	特重OT (b=s)	公稱
		最大值
		最小值
k	JI型和 H型

10.2	10.2	12.2	14.2	14.2	16.3	16.3	18.3	18.3	20.5	20.5	22.5	22.5	24.5
10.9	10.9	12.9	14.9	14.9	17	17	19.14	19.14	21.34	21.34	23.34	23.34	25.34
2	2	2.5	3	3	3.2	3.2	3.5	3.5	4	4	4.5	4.5	4.8
2.125	2.125	2.625	3.125	3.125	3.35	3.35	3.65	3.65	4.15	4.15	4.65	4.65	4.95
1.875	1.875	2.375	2.875	2.875	3.05	3.05	3.35	3.35	3.85	3.85	4.35	4.35	4.65
2.5	3	3.5	4	4	4.5	4.5	5	5	5.5	5.5	6	6	6.5
2.625	3.125	3.65	4.15	4.15	4.65	4.65	5.15	5.15	5.65	5.65	6.15	6.15	6.68
2.375	2.875	3.35	3.85	3.85	4.35	4.35	4.85	4.85	5.35	5.35	5.85	5.85	6.32
2.5	2.5	3	3.2	3.5	3.5	4	4	4.5	4.5	5	5	5.5	5.5
2.625	2.625	3.125	3.35	3.65	3.65	4.15	4.15	4.65	4.65	5.15	5.15	5.65	5.65
2.375	2.375	2.875	3.05	3.35	3.35	3.85	3.85	4.35	4.35	4.85	4.85	5.35	5.35
3	3	3.5	4	4	4.5	4.5	5	5	5.5	5.5	6	6	7
3.125	3.125	3.74	4.24	4.24	4.74	4.74	5.24	5.24	5.74	5.74	6.24	6.24	7.29
2.875	2.875	3.26	3.76	3.76	4.26	4.26	4.76	4.76	5.26	5.26	5.76	5.76	6.71
3.5	3.5	4	4.5	4.5	5	5	5.5	5.5	6	6	7	7	8
3.74	3.74	4.24	4.74	4.74	5.24	5.24	5.74	5.74	6.24	6.24	7.29	7.29	8.29
3.26	3.26	3.76	4.26	4.26	4.76	4.76	5.26	5.26	5.76	5.76	6.71	6.71	7.71
0.3	0.3	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.5

規格

(24)

(27)

(30)

(36)

(42)

(48)

d	最小值
	最大值
s	輕型(JI)	公稱
		最大值
		最小值
b	輕型(JI)	公稱
		最大值
		最小值
	标準H (b=s)	公稱
		最大值
		最小值
	重型T (b=s)	公稱
		最大值
		最小值
	特重OT (b=s)	公稱
		最大值
		最小值
k	JI型和 H型

24.5	27.5	27.5	30.5	30.5	33.5	36.5	36.5	39.5	42.5	42.5	45.5	48.5	48.5
25.34	28.34	28.34	31.5	31.5	34.5	37.5	37.5	40.5	43.5	43.5	46.5	49.5	49.5
5	5.5	5.5	6	6	6	6	6	6	7	7	7	7	7
5.15	5.65	5.65	6.15	6.15	6.15	6.15	6.15	6.15	7.18	7.18	7.18	7.18	7.18
4.85	5.35	5.35	5.85	5.85	5.85	5.85	5.85	5.85	6.82	6.82	6.82	6.82	6.82
7	7	8	8	9	10	10	10	10	12	12	12	12	12
7.18	7.18	8.18	8.18	9.18	10.18	10.18	10.18	10.18	12.215	12.215	12.215	12.215	12.215
6.82	6.82	7.82	7.82	8.82	9.82	9.82	9.82	9.82	11.785	11.785	11.785	11.785	11.785
6	6	7	6.5	8	7	8	9	8.5	9	10	9.5	10	12
6.15	6.15	7.18	6.68	8.18	7.18	8.18	9.18	8.68	9.18	10.18	9.68	10.18	12.215
5.85	5.85	6.82	6.32	7.82	6.82	7.82	8.82	8.32	8.82	9.82	9.32	9.82	11.785
7	8	8	9	9	/	10	10	/	12	12	/	/	/
7.29	8.29	8.29	9.29	9.29	/	10.29	10.29	/	12.35	12.35	/	/	/
6.71	7.71	7.71	8.71	8.71	/	9.71	9.71	/	11.65	11.65	/	/	/
8	9	9	10	10	/	12	12	/	/	/	/	/	/
8.29	9.29	9.29	10.29	10.29	/	12.35	12.35	/	/	/	/	/	/
7.71	8.71	8.71	9.71	9.71	/	11.65	11.65	/	/	/	/	/	/
0.5	0.5	0.5	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3103.3 - 2020

緊固件公差平墊圈

注：技術數據僅供參考，請以官方原件為準！
