帶鎖緊墊圈銷軸 GOST 9650 (Type 7) - 1980

選擇規格尺寸點擊↓

(25)

(28)

(32)

100

括号内尺寸為非優選

尺寸單位: mm

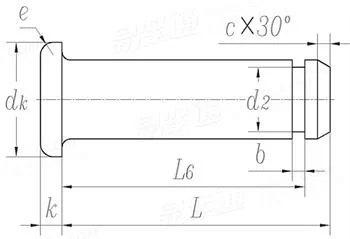

俄标GOST 9650 (Type 7) - 1980 GOST9650 965 帶鎖緊墊圈銷軸

掃一掃分享

公差

公稱直徑
d

(25)

(28)

d_k	标準
	加大
k	标準
	加大
d₂
b
e
c

6	8	10	12	14	16	18	20	22	25	28	32	36
7	/	/	14	18	20	22	25	28	30	33	38	40
1	1.6	2	2	2.5	2.5	3	3	3	4	4	5	5
1.5	/	/	3	4	4	4	4.5	5	5	5.5	6	6
3	3	4	4	8	8	10	10	14	14	18	20	20
1.5	1.5	1.5	1.5	1.5	1.5	2	2	2	2	2.5	2.5	2.5
0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	1	1	1	1
0.6	0.6	0.6	0.6	1	1	1.6	1.6	1.6	1.6	1.6	1.6	1.6

L₆

公稱直徑
d

(32)

100

d_k	标準
	加大
k	标準
	加大
d₂
b
e
c

38	40	45	50	55	60	65	70	80	90	100	110
44	45	50	55	60	66	72	78	90	100	110	120
5	6	6	6	7	7	8	8	10	10	12	12
8	8	8	8	9	9	11	12	13	13	13	13
24	24	28	32	36	40	45	45	55	65	75	85
2.5	2.5	3	3	3	3.5	3.5	3.5	3.5	3.5	3.5	3.5
1	1.6	1.6	1.6	2.5	2.5	2.5	2.5	2.5	4	4	4
1.6	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	4	4

L₆

①,允許将銷軸頭部和端部做成圓角，尺寸等于倒角尺寸e和c。

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
