帶鎖緊墊圈槽銷軸 GOST 9650 (Type 3) - 1980

選擇規格尺寸點擊↓

(25)

(28)

(32)

100

括号内尺寸為非優選

尺寸單位: mm

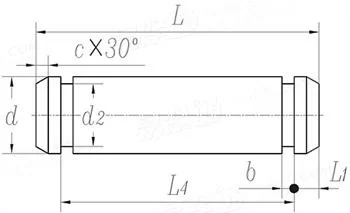

俄标GOST 9650 (Type 3) - 1980 GOST9650 965 帶鎖緊墊圈槽銷軸

掃一掃分享

公差

公稱直徑
d

(25)

(28)

L₁
d₂
b
c

1.5	1.5	1.5	1.5	2.5	2.5	3	3	3	3	3.5	3.5	6
3	3	4	4	8	8	10	10	14	14	18	20	20
1.5	1.5	1.5	1.5	1.5	1.5	2	2	2	2	2.5	2.5	2.5
0.6	0.6	0.6	0.6	1	1	1.6	1.6	1.6	1.6	1.6	1.6	1.6

L₄

公稱直徑
d

(32)

100

L₁
d₂
b
c

4.5	4.5	5	5	5	5.5	5.5	5.5	6.5	8.5	8.5	8.5
24	24	28	32	36	40	45	45	55	65	75	85
2.5	2.5	3	3	3	3.5	3.5	3.5	3.5	3.5	3.5	3.5
1.6	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	4	4

L₄

①,允許将銷軸頭部和端部做成圓角，尺寸等于倒角尺寸c。

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
