銷軸 JIS B 2801 - 1996

選擇規格尺寸點擊↓

尺寸單位: mm

掃一掃分享

公差

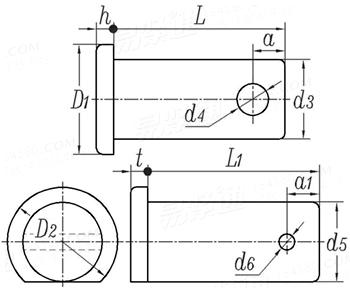

規格

d₃
D₁
L
a
h
d₄
d₅
d₆
D₂
t
a₁
L₁

40	42	46	48	51	54	56	58	60
55	58	62	64	68	72	74	77	79
147	155	165	172	181	188	195	204	211
17	17	19	19	20	20	21	21	21
8	9	10	10	10	11	11	11	12
17	17	19	19	20	20	21	21	21
16	16	18	18	19	19	20	20	20
4	4	4	4	4	4	4	4	4
24	24	26	26	28	28	30	30	30
5	5	5	5	5	5	6	6	6
5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
52	54	58	60	63	66	68	70	72

規格

d₃
D₁
L
a
h
d₄
d₅
d₆
D₂
t
a₁
L₁

65	70	77	83	90	96	102	108
87	95	104	112	120	128	136	144
235	252	275	296	317	335	359	379
25	25	28	31	33	33	37	39
12	13	14	15	16	18	20	22
25	25	28	31	33	33	37	39
24	24	27	30	32	32	36	38
5	5	5	6	6	6	6	6
38	38	40	44	48	48	52	56
8	8	8	9	9	9	10	12
7	7	7	8	8	8	8	8
79	84	91	99	106	112	118	124
