帶安全環槽銷軸 GOST 9650 (Type 8) - 1980

選擇規格尺寸 點擊↓

6

8

10

12

14

16

18

20

22

(25)

(28)

30

括号内尺寸為非優選
GOST  9650 (Type 8) - 1980 帶安全環槽銷軸

尺寸單位: mm
俄标GOST 9650 (Type 8) - 1980 GOST9650 965 帶安全環槽銷軸
GOST  9650 (Type 8) - 1980 帶安全環槽銷軸
掃一掃分享
公稱長度L
公稱直徑
d
6 8 10 12 14 16 18 20 22 (25) (28) 30
dk 标準
加大
k 标準
加大
d3 最大值=公稱
最小值
e
r1
c
10 12 14 16 18 20 22 25 28 32 36 38
/ 14 18 20 22 25 28 30 33 38 40 44
2 2 2.5 2.5 3 3 3 4 4 5 5 5
/ 3 4 4 4 4.5 5 5 5.5 6 6 8
5.6 7.6 9.6 11.4 13.4 15 17 18.8 20.8 23.8 26.8 28.8
5.5 7.5 9.5 11.3 13.3 14.9 16.9 18.6 20.6 23.6 26.6 28.6
0.6 0.6 0.6 0.6 0.6 0.6 0.6 1 1 1 1 1
0.4 0.4 0.4 0.6 0.6 1 1 1.2 1.2 1.2 1.2 1.2
0.6 0.6 1 1 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6

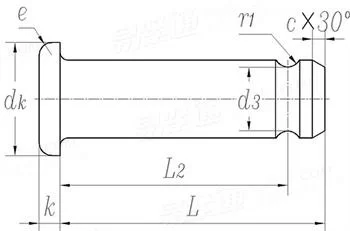

L2
- - - - - - - - - - - -
①,允許将銷軸頭部和端部做成圓角,尺寸等于倒角尺寸e和c。
注:技術數據僅供參考,請以官方原件為準!
