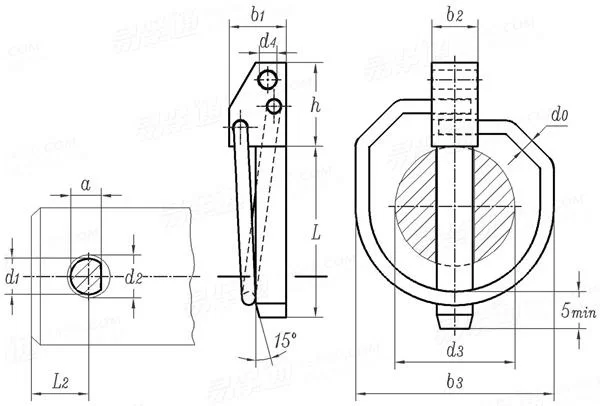

安全鎖止銷 DIN 11023 - 1979

選擇規格尺寸點擊↓

5 ×32

6 ×42

8 ×42

10 ×45

12 ×45

12 ×55

17 ×60

尺寸單位: mm

德标DIN 11023 - 1979 DIN11023 11023DIN 安全鎖止銷

掃一掃分享

公差

公稱直徑

5
×32

6
×42

8
×42

10
×45

12
×45

12
×55

17
×60

a
b₁	最大值
b₂	最大值
d₁	公稱
	最小值
	最大值
d₄
h	最大值
L
b₃	最大值
d₀	最小值
最小預緊力
d₂	最小值=公稱
d₂	最大值
d₃	最大值
L₂

4.5	5.5	7.5	8	9	9	12.5
11.5	14	15	15	15	15	21
7	8	9	12	14	14	20
4.5	5.5	7.5	9.5	11	11	16
4.3	5.3	7.3	9.3	10.5	10.5	15.5
4.8	5.8	7.8	9.8	11.5	11.5	16.5
3.5	4	4	4.5	4.5	4.5	6
18	22	22	22	22	22	29
32	42	42	45	45	55	60
36	52	52	52	52	60	60
2.5	3.6	3.6	3.6	3.6	4	4
5	14	14	14	14	14	14
5	6	8	10	12	12	17
5.075	6.075	8.09	10.09	12.11	12.11	17.11
25	32	32	32	32	45	45
8	10	12	14	18	18	21
