焊接單眼螺紋吊杆 GB /T 17116.3 - 2018

選擇規格尺寸 點擊↓

M68 ×4

M72 ×4

M80 ×4

M90 ×4

M100 ×4

M110 ×4

M125 ×4

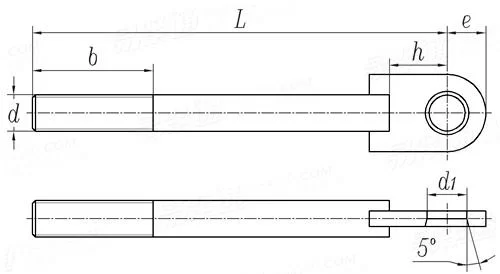

GB /T 17116.3 - 2018 焊接單眼螺紋吊杆

尺寸單位: mm
國标GB /T17116.3 - 2018 GB17116.3 17116.3G 焊接單眼螺紋吊杆
GB /T 17116.3 - 2018 焊接單眼螺紋吊杆
掃一掃分享
螺紋尺寸
d
M68
×4
M72
×4
M80
×4
M90
×4
M100
×4
M110
×4
M125
×4
d1
b
h
e
78 82 93 104 114 124 144
280(500) 280(500) 315(560) 355(560) 400(630) 450(630) 500(630)
140 140 160 180 200 224 250
112 112 125 140 160 180 200
①,可以是右螺紋,也可以是左螺紋;與長型螺旋扣相連,應采用括号内的尺寸。
注:技術數據僅供參考,請以官方原件為準!
