首頁 產品與标準 BS 4278 - 1984 電機用吊環螺釘

電機用吊環螺釘 BS 4278 - 1984

選擇規格尺寸 點擊↓

M12

M16

M20

M24

M30

M36

M42

M48

M52

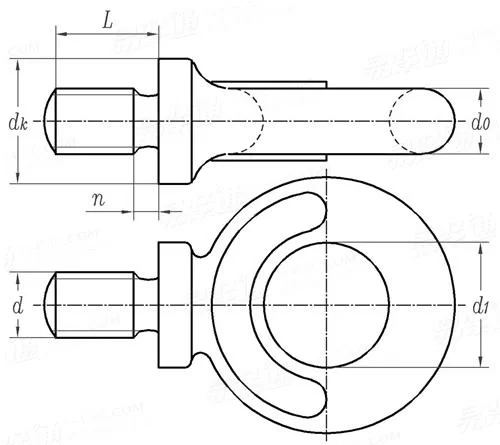

BS 4278 - 1984 電機用吊環螺釘

尺寸單位: 毫米(mm)
英标BS 4278 - 1984 BS4278 4278BS 電機用吊環螺釘
BS 4278 - 1984 電機用吊環螺釘
掃一掃分享
公差 公制螺紋極限尺寸 米/英制螺紋對照 螺紋直徑與受力截面積 最小破壞扭矩 牌号等級 毛坯直徑
螺紋規格
d
M12 M16 M20 M24 M30 M36 M42 M48 M52
額定載荷（軸向）/公噸
dk
d1
d0
L
n
0.32 0.63 1.25 2 3.2 5 6.3 8 10
17 23 32 40 51 63 70 79 89
22 29 40 51 64 79 88 99 112
9 11 15 19 24 30 33 37 42
18 23 32 40 51 63 70 79 89
3 3 5 6 7 9 10 11 13
注：技術數據僅供參考，請以官方原件為準！
