帶鐵鏈吊環螺釘 BS 4278 - 1984

選擇規格尺寸 點擊↓

M20

M24

M30

M36

M48

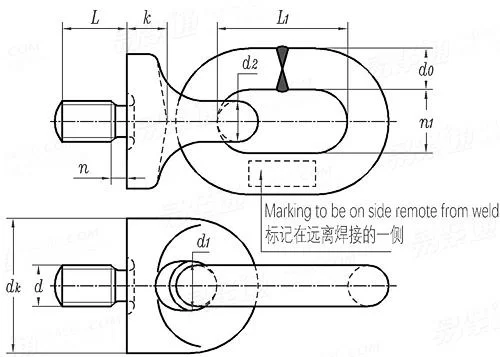

BS 4278 - 1984 帶鐵鏈吊環螺釘

尺寸單位: 毫米(mm)
英标BS 4278 - 1984 BS4278 4278BS 帶鐵鏈吊環螺釘
BS 4278 - 1984 帶鐵鏈吊環螺釘
掃一掃分享
公差 公制螺紋極限尺寸 米/英制螺紋對照 螺紋直徑與受力截面積 最小破壞扭矩 牌号等級 毛坯直徑
螺紋規格
d
M20 M24 M30 M36 M48
額定載荷（軸向）/公噸
dk
d1
d2
L
n
k
d0
n1
L1
1 1.6 2.5 4 6.3
39 47 60 75 94
15 18 23 29 36
12 14 18 23 29
27 32 41 52 65
4 5 6 7 9
12 14 18 23 29
13 15 19 24 30
24 29 37 46 58
53 63 80 102 126
注：技術數據僅供參考，請以官方原件為準！
