首頁 產品與标準 BS 4174 - 1972 米字槽盤頭自攻釘 [Table 17]

米字槽盤頭自攻釘 [Table 17] BS 4174 - 1972

選擇規格尺寸 點擊↓

2#

4#

6#

8#

10#

12#

14#

16#

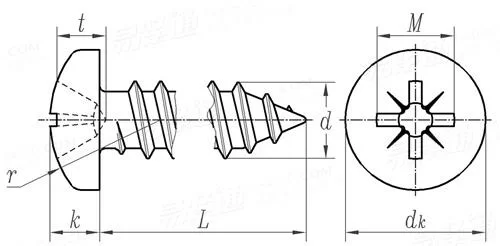

BS 4174 - 1972 米字槽盤頭自攻釘 [Table 17]

尺寸單位: 英寸(inch)
英标BS 4174 - 1972 BS4174 4174BS 米字槽盤頭自攻釘 [Table 17]
BS 4174 - 1972 米字槽盤頭自攻釘 [Table 17]
掃一掃分享
公差
規格
2# 4# 6# 8# 10# 12# 14# 16#
dk （mm） 最大值
最小值
k （mm） 最大值
最小值
r （mm） 公稱
t （mm） 最大值
最小值
M （mm） 公稱
槽号
dk （in.） 最大值
最小值
k （in.） 最大值
最小值
r （in.） 公稱
t （in.） 最大值
最小值
M （in.） 公稱
4.24 5.56 6.86 8.18 9.47 10.8 12.5 15.62
3.94 5.21 6.5 7.77 9.07 10.34 12.01 15.09
1.35 1.73 2.08 2.44 2.79 3.18 3.66 4.52
1.14 1.47 1.83 2.16 2.51 2.84 3.3 4.11
3.35 4.4 5.26 6.2 7.21 8.2 9.47 13.4
1.62 2.11 2.34 2.74 3.15 3.53 4.04 4.85
1.22 1.7 1.88 2.28 2.69 3.07 3.58 4.39
2.44 2.90 3.91 4.29 4.70 6.25 6.73 8.46
1 1 2 2 2 3 3 4
0.167 0.219 0.27 0.322 0.373 0.425 0.492 0.615
0.155 0.205 0.256 0.306 0.357 0.407 0.473 0.594
0.053 0.068 0.082 0.096 0.11 0.125 0.144 0.178
0.045 0.058 0.072 0.085 0.099 0.112 0.13 0.162
0.132 0.173 0.207 0.244 0.284 0.323 0.373 0.527
0.064 0.083 0.092 0.108 0.124 0.139 0.159 0.191
0.048 0.067 0.074 0.090 0.106 0.121 0.141 0.173
0.096 0.114 0.154 0.169 0.185 0.246 0.265 0.333

采用标準

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
注：技術數據僅供參考，請以官方原件為準！
