十字槽圓頭帶介自攻釘 DIN 968 - 1994

選擇規格尺寸 點擊↓

ST2.9

ST3.5

(ST3.9)

ST4.2

ST4.8

ST5.5

ST6.3

括号内尺寸為非優選

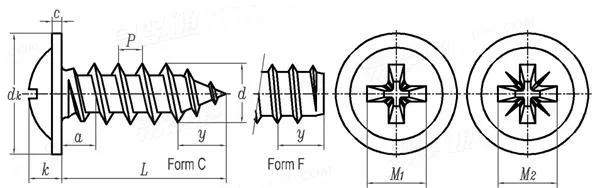

DIN 968 - 1994 十字槽圓頭帶介自攻釘

尺寸單位: mm
德标DIN 968 - 1994 DIN968 968DIN 十字槽圓頭帶介自攻釘
德标DIN 968 - 1994 DIN968 968DIN 十字槽圓頭帶介自攻釘
DIN 968 - 1994 十字槽圓頭帶介自攻釘
掃一掃分享
公差
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
×

選擇材料對應密度(g/cm3)

  • 碳鋼 7.85
  • 不鏽鋼 8.1
  • 不鏽鋼 7.95
  • 不鏽鋼 7.7
  • 钛合金 4.5
  • 鋁合金 2.8
  • 銅 8.89


在此選擇或在計算頁輸入材料密度 密度表
公稱長度L 注:選擇後獲得 相應重量
螺紋規格
d
ST2.9 ST3.5 (ST3.9) ST4.2 ST4.8 ST5.5 ST6.3
P 螺距
a 最大值
dc 最大值=公稱
最小值
k 最大值=公稱
最小值
h 最大值
最小值
槽号
M1 H型 參考值
深度 H型 最小值
深度 最大值
M2 Z型 參考值
深度 Z型 最小值
深度 最大值
y 參考值 C型
F型
1.1 1.3 1.3 1.4 1.6 1.8 1.8
1.1 1.3 1.3 1.4 1.6 1.8 1.8
7.5 9 10 10 11.5 13 14.5
6.92 8.42 9.42 9.42 10.8 12.3 13.8
2.35 2.6 2.8 3.05 3.55 3.8 4.55
2.1 2.35 2.55 2.75 3.25 3.5 4.25
0.8 0.9 1.1 1.1 1.35 1.6 1.8
0.6 0.7 0.9 0.9 1.05 1.2 1.4
1 2 2 2 2 3 3
3 4.2 4.4 4.6 5 6.5 7.1
1.35 1.4 1.63 1.8 2.26 2.49 3
1.8 2.03 2.26 2.46 2.87 3.15 3.66
2.9 3.9 4.1 4.3 4.7 6.2 6.7
1.58 1.47 1.7 1.88 2.28 2.51 3.02
1.83 1.93 2.16 2.34 2.74 2.97 3.48
2.6 3.2 3.5 3.7 4.3 5 6
2.1 2.5 2.7 2.8 3.2 3.6 3.6
千件鋼制重≈kg
- - - - - - -
替代列表
DIN 968 - 1994 DIN 968 - 2002 DIN 968 - 2008

技術條件和引用标準

材料
鋼
螺紋
十字槽
機械性能
公差 產品等級
标準
表面處理
驗收及包裝
ISO 1478
ISO 4757
ISO 2702
A
ISO 4759 part 1
Bright
電鍍 DIN EN ISO 4042
ISO 3269

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
