首頁 產品與标準 SJ 2824 - 1984 十字槽大扁頭自攻釘（ST 2.5~ST 6）

十字槽大扁頭自攻釘（ST 2.5~ST 6） SJ 2824 - 1984

選擇規格尺寸 點擊↓

ST2.5

ST3

ST3.5

ST4.0

ST5

ST6

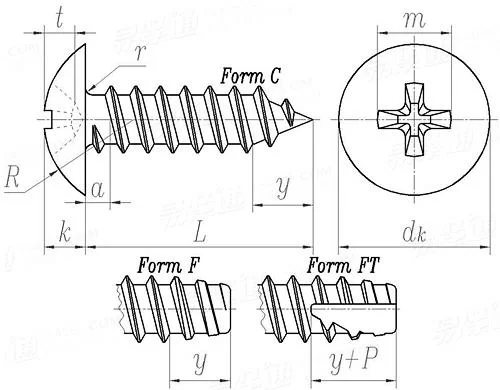

SJ 2824 - 1984 十字槽大扁頭自攻釘（ST 2.5~ST 6）

尺寸單位: mm
原電子工業部SJ 2824 - 1984 SJ2824 2824SJ 十字槽大扁頭自攻釘（ST 2.5~ST 6）
SJ 2824 - 1984 十字槽大扁頭自攻釘（ST 2.5~ST 6）
掃一掃分享
公差
螺紋規格
d
ST2.5 ST3 ST3.5 ST4.0 ST5 ST6
P 螺距
a 最大值
dk 最大值
最小值
k 最大值
最小值
y C型
F，FT型
槽号
M 最大值
插入深度 / 最大值
插入深度 / 最小值
0.91 1.06 1.27 1.41 1.59 1.81
0.91 1.06 1.27 1.41 1.59 1.81
5.5 6.4 7.4 8.5 10.6 12.5
5.1 5.9 6.9 8 10 11.8
2.1 2.6 2.75 2.85 3.55 4.3
1.9 2.3 2.45 2.55 3.25 3.9
2 2.6 3.2 3.7 4.3 6
1.6 2.1 2.5 2.8 3.2 3.6
1 2 2 2 2 3
2.6 3.7 3.8 4 4.8 6.2
1.42 1.63 1.73 1.93 2.73 2.86
1 1.06 1.16 1.35 2.14 2.26

技術條件和引用标準

螺紋
機械性能
公差 產品等級
标準
十字槽
表面處理
表面缺陷
驗收及包裝
SJ 2818-87
SJ 2819-87
A
GB 3103.1-87
SJ 2820-87
GB 5267-85 鍍層厚度為5μm
鍍鋅鈍化彩虹色不标記
GB 5779.1-86（含 ST 2.5~ST 4）
GB 90-85

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
注：技術數據僅供參考，請以官方原件為準！
