十字槽大扁頭自攻釘 QC /T 602 - 1999

選擇規格尺寸 點擊↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

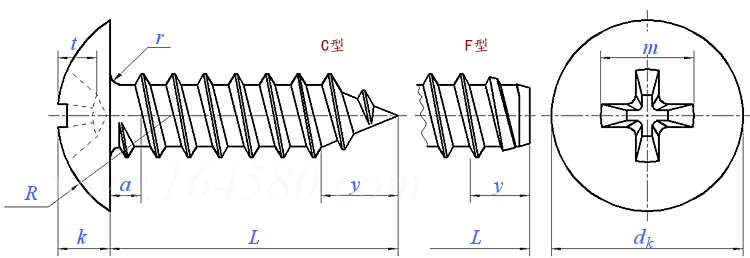

QC /T 602 - 1999 十字槽大扁頭自攻釘

尺寸單位: mm
汽标QC /T602 - 1999 QC602 602QC 十字槽大扁頭自攻釘
QC /T 602 - 1999 十字槽大扁頭自攻釘
掃一掃分享
公差
螺紋規格
d
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3
P 螺距
dk 最大值
最小值
k 最大值
最小值
槽号
1.1 1.3 1.4 1.6 1.8 1.8
7 8 10 12 14 14
6.5 7.5 9.5 11.5 13.5 13.5
2.05 2.35 2.65 3.15 3.45 3.9
1.75 2.05 2.35 2.85 3.15 3.5
1 2 2 2 2 3

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
注：技術數據僅供參考，請以官方原件為準！
