十字槽盤頭自攻螺釘 ISO 7049 - 1983

選擇規格尺寸 點擊↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

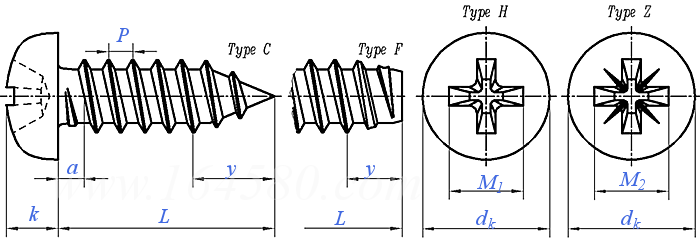

ISO 7049 - 1983 十字槽盤頭自攻螺釘

尺寸單位: mm
國際ISO 7049 - 1983 ISO7049 7049ISO 十字槽盤頭自攻螺釘
國際ISO 7049 - 1983 ISO7049 7049ISO 十字槽盤頭自攻螺釘
模型下載 替
ISO 7049 - 1983 十字槽盤頭自攻螺釘
掃一掃分享
單重計算 公差
螺紋尺寸
d
ST2.2 ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
a 最大值
dk 最大值
最小值
k 最大值
最小值
槽号
M1 H型 參考值
深度 H型 最小值
最大值
M2 Z型 參考值
深度 Z型 最小值
最大值
y C型
F型
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
4 5.6 7 8 9.5 11 12 16 20
3.7 5.3 6.64 7.64 9.14 10.57 11.57 15.57 19.48
1.6 2.4 2.6 3.1 3.7 4 4.6 6 7.5
1.4 2.15 2.35 2.8 3.4 3.7 4.3 5.6 7.1
0 1 2 2 2 3 3 4 4
1.9 3 3.9 4.4 4.9 6.4 6.9 9 10.1
0.85 1.4 1.4 1.9 2.4 2.6 3.1 4.15 5.2
1.2 1.8 1.9 2.4 2.9 3.1 3.6 4.7 5.8
2 3 4 4.4 4.8 6.2 6.8 8.9 10.1
0.95 1.45 1.5 1.95 2.3 2.55 3.05 4.05 5.25
1.2 1.75 1.9 2.35 2.75 3 3.5 4.5 5.7
2 2.6 3.2 3.7 4.3 5 6 7.5 8
1.6 2.1 2.5 2.8 3.2 3.6 3.6 4.2 4.2
替代列表
ISO 7049 - 1983 ISO 7049 - 2011
等效标準
國标 GB 國際 ISO 德标 DIN 意大利 UNI 法國 NF
GB /T 845
ISO 7049
DIN EN ISO 7049
UNI 6954
NF E 25-658
以上有部分标準可能為近似等效，如有異議以标準原件為準

工藝相關

ISO 4757
H型十字槽
ISO 4757
Z型十字槽（米字槽）
ISO 225
緊固件 螺栓、螺釘、螺柱和螺母 尺寸代号和标注
ISO 1478
自攻螺紋
ISO 2702
熱處理鋼制自攻螺釘 機械性能
ISO 3269
緊固件 驗收檢查
ISO 4042
緊固件一電鍍塗層系統
ISO 4759-1
緊固件公差 Part1:螺栓、螺釘、螺柱和螺母 產品等級 A、B和 C級

技術條件和引用标準

材料
螺紋
機械性能
公差 產品等級
标準
表面處理
驗收及包裝
鋼（ISO 2702）
ISO 1478
ISO 2702
A
ISO 4759-1
Plain；
電鍍技術要求按 ISO 4042;
如需其他技術要求或表面處理，應由供需協議。
ISO 3269

引用參考

GB /T 3098.5
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
