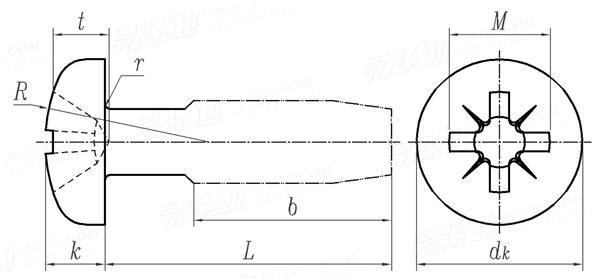

ASME B 18.6.5M (T18) - 2000 (R2010) 米制米字槽盤頭自攻螺釘 [Table 18]

尺寸單位: mm
美标ASME B18.6.5M (T18) - 2000 (R2010) ASM 米制米字槽盤頭自攻螺釘 [Table 18]
ASME B 18.6.5M (T18) - 2000 (R2010) 米制米字槽盤頭自攻螺釘 [Table 18]
掃一掃分享
單重計算 公差
螺紋規格
d
ST2.2 ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
dk 最大值
最小值
k 最大值
最小值
R 參考值
r 最小值
M 參考值
t 參考值
b 最小值
槽号
螺紋及末端型式
0.8 1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
4 5.6 7 8 9.5 11 12 16 20
3.7 5.3 6.6 7.6 9.1 10.5 11.5 15.5 19.4
1.6 2.4 2.6 3.1 3.7 4 4.6 6 7.5
1.4 2.2 2.3 2.8 3.4 3.7 4.3 5.6 7.1
3.2 5 6 6.5 8 9 10 13 16
0.1 0.1 0.1 0.2 0.2 0.2 0.3 0.4 0.4
1.92 2.86 3.9 4.36 4.76 6.3 6.8 8.82 10.04
1.22 1.83 2.14 2.54 2.94 3.34 3.84 4.96 6.16
13 17 21 25 29 33 38 38 38
0 1 2 2 2 3 3 4 4
AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT
螺紋規格
d
M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
P 螺距
dk 最大值
最小值
k 最大值
最小值
R 參考值
r 最小值
M 參考值
t 參考值
b 最小值
槽号
螺紋及末端型式
0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
4 5 5.6 7 8 9.5 12 16 20
3.7 4.7 5.3 6.6 7.6 9.1 11.5 15.5 19.4
1.6 2.1 2.4 2.6 3.1 3.7 4.6 6 7.5
1.4 1.9 2.2 2.3 2.8 3.4 4.3 5.6 7.1
3.2 4 5 6 6.5 8 10 13 16
0.1 0.1 0.1 0.1 0.2 0.2 0.3 0.4 0.4
1.92 2.62 2.86 3.9 4.36 4.76 6.8 8.82 10.04
1.22 1.58 1.83 2.14 2.54 2.94 3.84 4.96 6.16
12 15 18 21 24 30 38 38 38
0 1 1 2 2 2 3 4 4
D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T
①,類似的ISO标準是ISO 7049。

采用标準

引用标準

1 [美标]
ASME B 18.6.5M - 2000 (R2010)		 米制自攻螺釘用螺紋及末端型式
Metic threads and points for tapping screws
米制自攻螺釘用螺紋及末端型式

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
注：技術數據僅供參考，請以官方原件為準！
