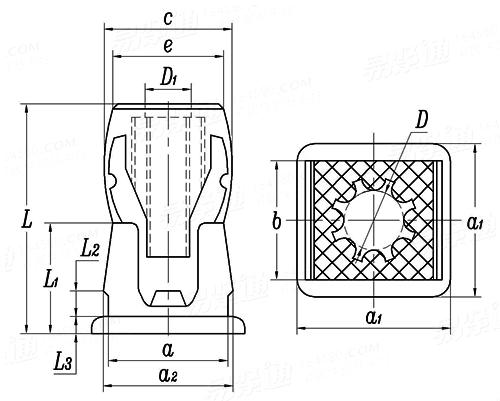

C型通孔式嵌裝塑料螺母 QC /T 616 - 1999

選擇規格尺寸點擊↓

尺寸單位: mm

汽标QC /T616 - 1999 QC616 616QC C型通孔式嵌裝塑料螺母

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照

代号

a₁
b
L₃
D
D₁
L₂
L₁
L
c
e
a
a2
适用螺紋	自攻螺釘

11	9	9	12	11	14	15
8	7	7	9	8	10	11
1.2	1	1	1.2	1.2	1.5	1.5
2.8~3	3~3.2	3.4~3.6	3.4~3.6	3.4~3.6	3.8~4	4.2~4.5
2.5	2.5	2.7	2.7	2.7	3	3.5
1.8~2	2.3~2.5	1.3~1.5	1.6~1.8	1.8~2	2.3~2.5	2.3~2.5
7.3~7.5	8~8.2	6.3~6.5	7.8~8	7.3~7.5	9.8~10	9.8~10
16	15	13.5	17	16	20	21
8.5	8.5	7.5	9.7	8.5	11	12
7.5	6.5	6.5	8.5	7.5	9.5	10.5
8	7	7	9	8	10	11
8.6~8.8	7.5~7.7	7.5~7.7	9.8~10	8.6~8.8	11~11.2	12~12.2
ST3.5	ST3.5	ST4.2	ST4.2	ST4.2	ST4.8	ST5.5
