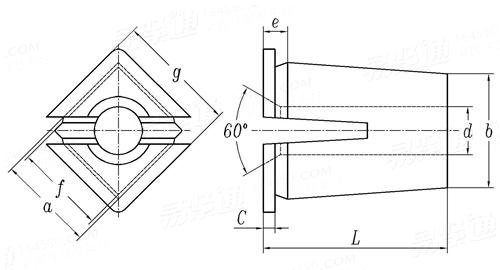

D型通孔式嵌裝塑料螺母 Q 378

選擇規格尺寸點擊↓

尺寸單位: mm

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

代号

适用螺紋 ^①
d
a
b
c
e
f
g
L

NST4.5	NST5	NST6	NST7
2.8~3.3	3.1~3.7	4~4.7	4.9~5.6
7.3	10	10	10
8.3~8.5	11.8~12	11.8~12	11.8~12
1.2	1.2	1.2	1.2
2.4~2.6	2.4~2.6	2.4~2.6	2.4~2.6
6.85~7	9.35~9.5	9.35~9.5	9.35~9.5
9.5	12.5	12.5	12.5
11.7	19.2	19.2	19.2

①,與D型通孔式嵌裝塑料螺母相配的自攻釘螺紋按 QC/T 713的規定。

采用标準

QC /T 890 - 2011

D型通孔式嵌裝塑料螺母

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

緊固件公差（螺栓、螺柱、螺釘和螺母）

GB 3103.2 - 1982

緊固件公差 - 用于精密機械的螺栓、螺釘和螺母

注：技術數據僅供參考，請以官方原件為準！
