滾花通孔中間帶槽台階鑲入螺母帶密封墊 H型 DIN 16903 (H) - 1974

選擇規格尺寸點擊↓

M2.5

(M3.5)

括号内尺寸為非優選

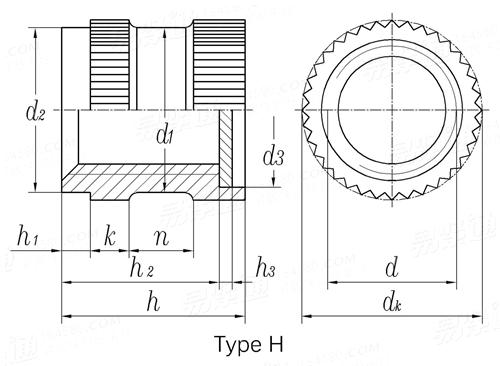

DIN 16903 (H) - 1974 滾花通孔中間帶槽台階鑲入螺母帶密封墊 H型

尺寸單位: mm

德标DIN 16903 (H) - 1974 DIN16903 16903DIN 滾花通孔中間帶槽台階鑲入螺母帶密封墊 H型

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

螺紋規格
d

M2.5

(M3.5)

k
h₁
n
h₃
d₁	(h12)
d_k	（滾花前）
d₂	(h11)
d₃	(D11)
h₂	(h14)
h	(h12)

1	1.2	1.2	1.5	1.5	2	2.5
0.8	0.8	1	1	1	1	1
1.5	1.6	1.8	2.2	2.5	3	3.5
0.32	0.32	0.32	0.5	0.5	0.5	0.5
3.2	3.4	3.8	4.5	5	6.4	7.4
3.5	3.8	4.2	5	5.5	7	8
3.5	3.8	4.2	5	5.5	7	8
2.6	2.8	3.2	3.8	4.5	6	7
3.5	4	4.5	5.5	6	7.5	9
4.3	4.8	5.3	6.5	7	8.5	10

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

緊固件公差（螺栓、螺柱、螺釘和螺母）

GB 3103.2 - 1982

緊固件公差 - 用于精密機械的螺栓、螺釘和螺母

注：技術數據僅供參考，請以官方原件為準！
