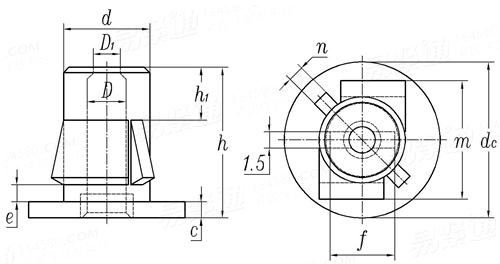

B型通孔式嵌裝塑料螺母 Q 376B

選擇規格尺寸點擊↓

尺寸單位: mm

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照

代号

适用螺紋	自攻螺釘
D
D₁
d_c
d
c
e
f
h
h₁
m
n

NST4.5	NST4.5	NST5	NST5.5	NST5.5
2.8~3	2.8~3	3.1~3.7	3.6~4.2	3.6~4.2
2	2	2.5	3	3
11.5	14.5	14.5	18	18
6.8~7	7.8~8	7.8~8	7.8~8	7.8~8
1	1.5	1.5	2	2
1.2~1.4	1.5~1.7	1.5~1.7	0.8~1	1.4~1.6
6	7.5	7.5	12.5	12.5
10	14	14	14.5	15
3	5	5	5	5
9.3~9.5	11.8~12	11.8~12	12.3~12.5	12.3~12.5
1	1.5	1.5	1.5	1.5

①,技術條件按QC/T 618 的規定。

采用标準

QC /T 615 - 2011

B型通孔式嵌裝塑料螺母

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

緊固件公差（螺栓、螺柱、螺釘和螺母）

GB 3103.2 - 1982

緊固件公差 - 用于精密機械的螺栓、螺釘和螺母

注：技術數據僅供參考，請以官方原件為準！
