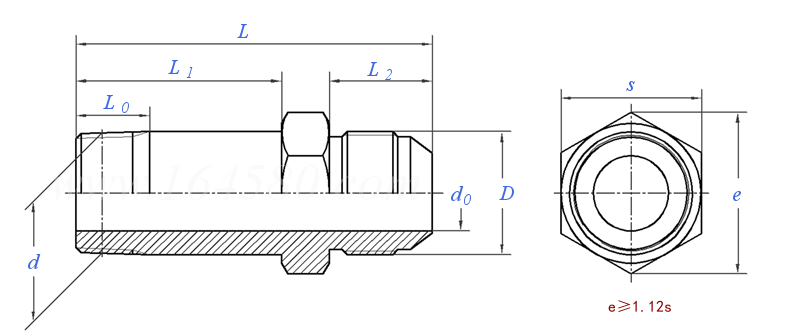

擴口式錐螺紋長接頭體 GB /T 5627 - 2008

選擇規格尺寸點擊↓

尺寸單位: mm

國标GB /T5627 - 2008 GB5627 5627GB 擴口式錐螺紋長接頭體

掃一掃分享

公差

管外徑

d₀
d ^①	55°密封管螺紋
	60°圓錐管螺紋
D
L₀
L₂
L
L₁
s

3	3.5	4	6	8	10	10	14	15	17	19	22	24	27	30
R 1/8	R 1/8	R 1/8	R 1/4	R 1/4	R 3/8	R 3/8	R 1/2	R 1/2	R 3/4	R 3/4	R 1	R 1	R 1-1/4	R 1-1/4
NPT 1/8	NPT 1/8	NPT 1/8	NPT 1/4	NPT 1/4	NPT 3/8	NPT 3/8	NPT 1/2	NPT 1/2	NPT 3/4	NPT 3/4	NPT 1	NPT 1	NPT 1-1/4	NPT 1-1/4
M10×1	M10×1	M12×1.5	M14×1.5	M16×1.5	M18×1.5	M22×1.5	M24×1.5	M27×1.5	M30×2	M33×2	M36×2	M39×2	M42×2	M45×2
8.5	8.5	8.5	12.5	12.5	13	13	17	17	18	18	21.5	21.5	24	24
12.5	12.5	16	18	19	19	19.5	20	20.5	26	26	26	27.5	28.5	28.5
48.5	48.5	53	85	86	87	87.5	89	89.5	96	96	98	100.5	102.5	102.5
30	30	30	60	60	60	60	60	60	60	60	60	60	60	60
12	12	14	17	19	22	24	27	30	32	34	41	41	46	46

①,優先選用55°密封管螺紋。
②,e ≥ 1.12S。
③,技術要求按 GB/T 5653 的規定。

工藝相關

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
