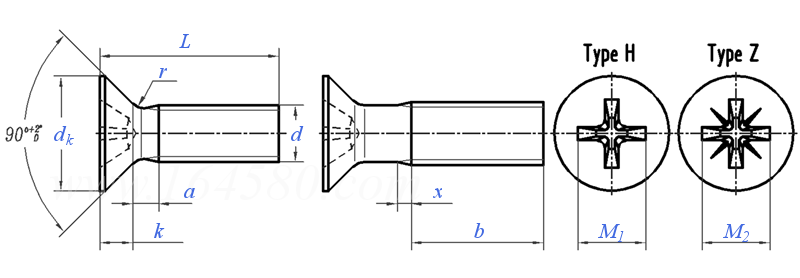

十字槽沉頭螺釘 DIN 965 - 1990

選擇規格尺寸點擊↓

M1.6

M2.5

(M3.5)

M10

括号内尺寸為非優選

尺寸單位: mm

模型下載

模型下載替

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

螺紋尺寸
d

M1.6

M2.5

(M3.5)

M10

P	螺距
a	最大值
d_k	最大值=公稱
d_k	最小值
k	最大值
r	最大值
x	最大值
槽号
M₁	≈
M₂	≈

0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5
0.7	0.8	0.9	1	1.2	1.4	1.6	2	2.5	3
3	3.8	4.7	5.6	6.5	7.5	9.2	11	14.5	18
2.75	3.5	4.4	5.3	6.14	7.14	8.84	10.57	14.07	17.57
0.96	1.2	1.5	1.65	1.93	2.2	2.5	3	4	5
0.4	0.5	0.7	0.8	0.95	1	1.3	1.6	2	2.5
0.9	1	1.1	1.25	1.5	1.75	2	2.5	3.2	3.8
0	1	1	1	2	2	2	3	4	4
1.7	2.35	2.7	2.9	3.9	4.4	4.6	6.6	8.7	9.6
1.8	2.2	2.5	2.8	3.7	4	4.4	6.1	8.5	9.4

千件鋼制重≈kg

螺紋長度b

最小值

①,材料：
a)鋼，強度等級(材料)：4.8,5.8,8.8. 标準DIN ISO 898-1
b)不鏽鋼，強度等級(材料)：A2-70，A4-70. 标準DIN 267-11
c)有色金屬，強度等級(材料)：CuZn=銅鋅合金，CU2或CU3由制造商選擇。标準DIN 267-18
d)其他強度等級或材料或某種材料，例如 CU3，按協議

替代列表

DIN 965 - 1990 DIN EN ISO 7046-1 - 2011

DIN 965 - 1990 DIN EN ISO 7046-2 - 2011

等效标準

國标 GB	國際 ISO	德标 DIN	意大利 UNI	法國 NF
GB /T 819.1	ISO 7046-1	DIN EN ISO 7046-1	UNI 7688	NF E 25-119-1

國标 GB	國際 ISO	德标 DIN	法國 NF
GB /T 819.2	ISO 7046-2	DIN EN ISO 7046-2	NF E 25-119-2

以上有部分标準可能為近似等效，如有異議以标準原件為準

技術條件和引用标準

材料

鋼

不鏽鋼

有色金屬

通用要求
螺紋	公差
	标準
機械性能	等級
	标準
公差	產品等級
	标準
表面處理	-
	-
表面粗糙度
表面缺陷
驗收及包裝
備注

DIN 267 part 1
6g^①
DIN 13 part 13,15
4.8，5.8，8.8	A2-70，A4-70	CuZn = 銅鋅合金 CU2或CU3由制造商選擇
DIN ISO 898 part 1	DIN 267 part 11	DIN 267 part 18
A
DIN ISO 4759 part 1
不經處理 8.8：blackened （thermally or chemically）	blank	blank
電鍍 DIN 267 part 9
DIN 267 part 2
DIN 267 part 19
DIN 267 part 5
① Only for screws without surface protection. 6 g makes it possible for normal coating thicknesses to be applied in accordance with DIN 267 part 9, the reference line not being exceeded. Depending on the coating thickness required, a larger fundamental deviation shall be selected than that for the g position. This might, however, impair the resistance to stripping of the bolt / nut assembly.

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
