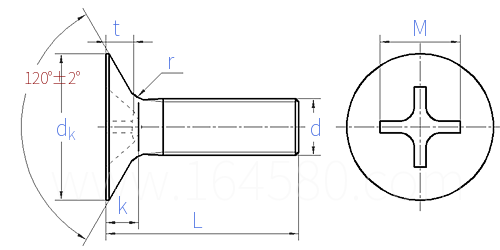

十字槽120°沉頭螺釘 HB 1- 208 - 1995

選擇規格尺寸點擊↓

M10

尺寸單位: mm

航空HB 1-208 - 1995 HB208 208HB 十字槽120°沉頭螺釘

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱直徑
d

M10

k	最大值
	最小值
d_k	最大值
	最小值

1.9	2.2	2.8	3.3	3.6	4
1.65	1.95	2.55	3	3.3	3.7
9	11	14	16.5	19.5	23
8.6	10.5	13.5	16	19	22.3

千件鋼制重≈kg

①,鋁合金制螺釘的重量，應将相同尺寸的鋼螺釘重量乘以正系數0.356。
②,根據需要，可以選用粗線以外較長的螺釘，當長度為62~100mm時，其間隔取2mm，超過100mm時，其間隔取4mm。

技術條件和引用标準

-
-
-
-
-
其他技術條件

材料	限用直徑	熱處理(MPa)	表面處理
ML25	3~10	-	鍍鋅鈍化
ML30CrMnSiA	4~10	6b=1175±100	d ≤ M8 鍍鋅鈍化 d = M10 鍍镉鈍化
1Cr17Ni2	3~10	d ≥ M4, 6b=1175±100	鈍化
LY8	3~10	6b ≥ 375	陽極化
十字槽按 GB 944-76 标志按 HB0-3-83 破壞拉力按HB1-217-95 技術條件按HB1-218-95

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
