米字槽沉頭螺釘Table4 BS 1981 - 1991

選擇規格尺寸點擊↓

(3#)

10#

(12#)

1/4

5/16

3/8

7/16

1/2

括号内尺寸為非優選

尺寸單位: inch

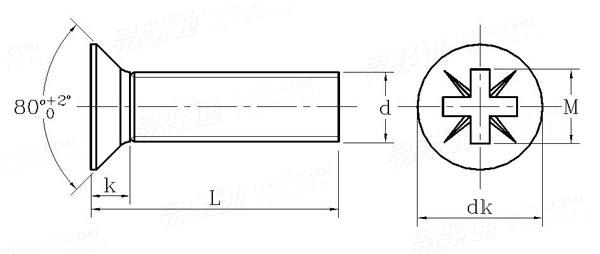

英标BS 1981 - 1991 BS1981 1981BS 米字槽沉頭螺釘Table4

掃一掃分享

單重計算公差美制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級

螺紋規格
d

(3#)

10#

(12#)

1/4

5/16

3/8

7/16

1/2

d_k	最大值
	最小值
k
深度	最大值
	最小值
M
槽号

0.172	0.199	0.225	0.252	0.279	0.332	0.385	0.438	0.507	0.635	0.762	0.812	0.875
0.147	0.171	0.195	0.22	0.244	0.292	0.34	0.389	0.452	0.568	0.685	0.723	0.775
0.051	0.059	0.067	0.075	0.083	0.1	0.116	0.132	0.153	0.191	0.23	0.223	0.223
0.053	0.058	0.079	0.071	0.091	0.107	0.122	0.125	0.151	0.193	0.222	0.238	0.253
0.043	0.048	0.069	0.053	0.073	0.089	0.104	0.107	0.133	0.175	0.204	0.220	0.235
0.094	0.099	0.12	0.146	0.166	0.181	0.196	0.25	0.275	0.357	0.385	0.401	0.416
1	1	1	2	2	2	2	3	3	4	4	4	4
