100°十字槽沉頭螺釘 (ASTM F837, F468) ASME B 18.6.3 (H1D-I/H1D-IA) - 2024

選擇規格尺寸 點擊↓

0#

1#

2#

3#

4#

6#

8#

10#

1/4

5/16

3/8

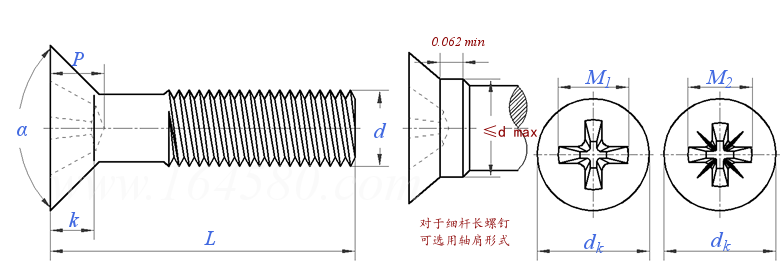

ASME B 18.6.3 (H1D-I/H1D-IA) - 2024 100°十字槽沉頭螺釘  (ASTM F837, F468)

尺寸單位: inch
美标ASME B18.6.3 (H1D-I/H1D-IA) - 2024 ASM 100°十字槽沉頭螺釘  (ASTM F837, F468)
ASME B 18.6.3 (H1D-I/H1D-IA) - 2024 100°十字槽沉頭螺釘  (ASTM F837, F468)
掃一掃分享
螺紋尺寸
d
0# 1# 2# 3# 4# 6# 8# 10# 1/4 5/16 3/8
d 公稱
PP
dk 最大值
最小值
k 參考值
槽号
M1 I 型
M2 IA型
P I 型 最大值
最小值
IA型 最大值
最小值
α 最大值
最小值
0.0600 0.0730 0.0860 0.0990 0.1120 0.1380 0.1640 0.1900 0.2500 0.3125 0.3750
/ 64 56 48 40 32 32 24 20 18 16
0.112 0.137 0.162 0.187 0.212 0.262 0.312 0.362 0.477 0.597 0.717
0.095 0.118 0.142 0.165 0.188 0.235 0.282 0.329 0.437 0.550 0.662
0.026 0.031 0.037 0.043 0.049 0.060 0.072 0.083 0.110 0.138 0.165
0 0 1 1 1 2 2 2 3 4 4
0.054 0.062 0.088 0.096 0.110 0.148 0.162 0.178 0.240 0.310 0.336
0.054 0.062 0.088 0.096 0.110 0.148 0.162 0.178 0.240 0.310 0.336
0.028 0.036 0.049 0.056 0.071 0.075 0.090 0.105 0.118 0.148 0.173
0.012 0.020 0.033 0.040 0.055 0.052 0.067 0.082 0.095 0.126 0.151
0.029 0.037 0.046 0.053 0.068 0.071 0.086 0.101 0.114 0.145 0.170
0.013 0.021 0.030 0.037 0.052 0.053 0.068 0.083 0.096 0.127 0.152
101° 101° 101° 101° 101° 101° 101° 101° 101° 101° 101°
99° 99° 99° 99° 99° 99° 99° 99° 99° 99° 99°
①,若以小數規定公稱直徑,應省略小數前和小數點後第四位的零。
②,機械螺釘的螺紋長度:

1)螺紋規格≤5#: 公稱長度≤3倍公稱直徑的應為滿扣產品,頭下螺紋肩距≤1倍螺距。 公稱長度>3倍公稱直徑到 1-1/8 in 的,允許頭下肩距最大不超過2倍螺距。 若無其他規定,長螺釘的最小螺紋長度為1 in 。

2)螺紋規格≥6#: 公稱長度≤3倍公稱直徑的應為滿扣產品,頭下螺紋肩距≤1倍螺距。 公稱長度>3倍公稱直徑到 2 in 的,允許頭下螺紋肩距最大不超過2倍螺距。 若無其他規定,長螺釘的最小螺紋長度為 1.5 in 。
替代列表

長度公差

  Machine screws can be made to any length, but they are generally produced in fractional length increments of 1/16 in. for screws up to 5/8 in. long, 1/8 in. for screws over 5/8 in. through 1-1/2 in. long, and 1/4 in. for screws over 1-1/2 in. long.

标稱螺釘尺寸的長度公差

标稱螺釘長度

螺紋規格

0000~00

0~12

1/4~3/4

1/2

-0.01

-0.02

-0.03

1/2,1

-0.02

-0.03

-0.03

1,2

/

-0.06

-0.06

2

/

-0.09

-0.09

注:技術數據僅供參考,請以官方原件為準!
