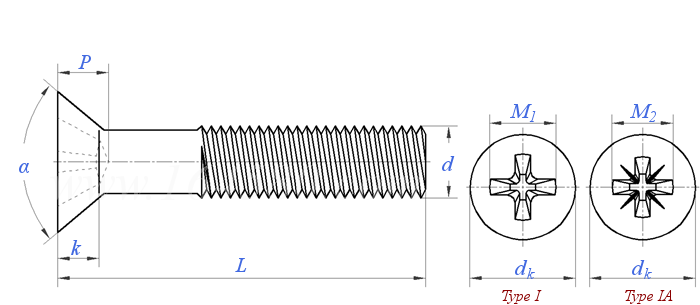

100°十字槽沉頭精整螺釘 ASME B 18.6.3 (T6-I/T6-IA) - 2013
| 選擇規格尺寸 點擊↓ 4# 6# 8# 10# 1/4 5/16 3/8 7/16 1/2 9/16 5/8 |
尺寸單位:
inch |
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,若以小數規定公稱直徑，應省略小數前和小數點後第四位的零。 ②,機械螺釘的螺紋長度： 1）螺紋規格≤5#: 公稱長度≤3倍公稱直徑的應為滿扣產品，頭下螺紋肩距≤1倍螺距。 公稱長度＞3倍公稱直徑到 1-1/8 in 的，允許頭下肩距最大不超過2倍螺距。 若無其他規定，長螺釘的最小螺紋長度為1 in 。 2）螺紋規格≥6#: 公稱長度≤3倍公稱直徑的應為滿扣產品，頭下螺紋肩距≤1倍螺距。 公稱長度＞3倍公稱直徑到 2 in 的，允許頭下螺紋肩距最大不超過2倍螺距。 若無其他規定，長螺釘的最小螺紋長度為 1.5 in 。 |
采用标準
注：技術數據僅供參考，請以官方原件為準！
