沉頭雙榫螺栓 GB /T 800 - 1988

選擇規格尺寸 點擊↓

M6

M8

M10

M12

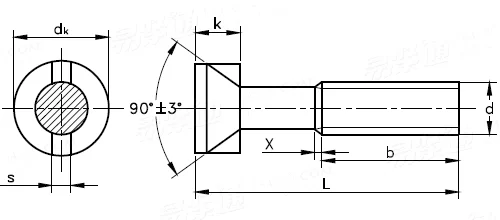

GB /T 800 - 1988 沉頭雙榫螺栓

尺寸單位: mm
國标GB /T800 - 1988 GB800 800GB 沉頭雙榫螺栓
GB /T 800 - 1988 沉頭雙榫螺栓
掃一掃分享
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
公稱長度L 注:選擇後獲得 相應重量
螺紋規格
d
M6 M8 M10 M12
P 螺距
b
dk 最大值
最小值
s 最大值
最小值
k
x 最大值
1.00 1.25 1.50 1.75
18 22 26 30
11.05 14.55 17.55 21.65
9.95 13.45 16.45 20.35
3.20 4.20 5.24 5.24
2.80 3.80 4.76 4.76
3.00 4.10 4.50 5.50
2.5 3.2 3.8 4.2
千件鋼制重≈kg
- - - -
替代列表
注:技術數據僅供參考,請以官方原件為準!
類似标準及供貨信息
1 沉頭帶榫螺栓 [國标]
GB /T 11 - 2013
沉頭帶榫螺栓
Countersunk Head Nib Bolts
供應商(1)
2 沉頭帶榫螺栓 [國标]
GB /T 11 - 1988
沉頭帶榫螺栓
Flat Countersunk Nib Bolts
供應商(1)
3 沉頭帶榫螺栓 [國标]
GB 11 - 1976
沉頭帶榫螺栓
Countersunk head nib bolts
供應商(1)
4 沉頭雙榫螺栓 [國标]
GB /T 800 - 2020
沉頭雙榫螺栓
Countersunk Head Double Nib Bolts
5 沉頭帶榫螺栓 [德标]
DIN 604 - 2017
沉頭帶榫螺栓
Flat Countersunk Head Nib Bolts
供應商(2)
6 沉頭帶榫螺栓 [德标]
DIN 604 - 2010
沉頭帶榫螺栓
Flat Countersunk Head Nib Bolts
供應商(2)
7 沉頭帶榫螺栓 [德标]
DIN 604 - 1981
沉頭帶榫螺栓
Flat Countersunk Nib Bolts
供應商(2)
8 鐵路車輛用沉頭雙榫螺栓 [德标]
DIN 25195 - 2003
鐵路車輛用沉頭雙榫螺栓
Railway Vehicles - Countersunk Bolts With Double Nip With Metric ISO Thread - Class C
9 圓柱沉頭帶榫螺栓 [德标]
DIN 792 - 1976
圓柱沉頭帶榫螺栓
Cylindrical Counter Sunk Screws
10 農業機械用,米制螺紋、精制沉頭雙榫螺栓 [德标]
DIN 11014 - 1968
農業機械用,米制螺紋、精制沉頭雙榫螺栓
Agricultural Equipment; Countersunk Double-nip Bolts, Sinkings, Metric Thread, Finish
11 沉頭帶榫螺栓 [Table 2] [日标]
JIS B 1179 (T2) - 1994
沉頭帶榫螺栓 [Table 2]
Flat Countersunk Nib Bolts [Table 2]
12 沉頭帶尖榫螺栓4 [美标]
ASME/ANSI B 18.9 - 2007
沉頭帶尖榫螺栓4
Flat countersunk head nib bolts
13 沉頭帶尖榫螺栓6 [美标]
ASME/ANSI B 18.9 - 2007
沉頭帶尖榫螺栓6
Flat countersunk head nib bolts
14 沉頭帶榫螺栓 [美标]
ASME/ANSI B 18.9 - 2007
沉頭帶榫螺栓
Flat countersunk head nib bolts
15 C級沉頭帶榫螺栓 [意大利]
UNI 6105 - 1967
C級沉頭帶榫螺栓
Flat Countersunk Head Nib Bolts - Grade C
16 米制90°沉頭帶榫螺栓 [英标]
BS 4933 - 1973
米制90°沉頭帶榫螺栓
Metric 90°Countersunk Head Nibbed Bolts
17 粗制沉頭帶榫螺栓Table4 [英标]
BS 325 - 1947
粗制沉頭帶榫螺栓Table4
Black Countersunk Nibbed Bolts
18 沉頭雙尖榫螺栓 [台灣]
CNS 4697 - 1982
沉頭雙尖榫螺栓
Countersunk Bolts With Double Nips
19 沉頭雙榫螺栓 [台灣]
CNS 4698 - 1982
沉頭雙榫螺栓
Countersunk Double-Rib Bolts
20 沉頭帶榫螺栓 [台灣]
CNS 4417 - 1981
沉頭帶榫螺栓
Countersunk Head Nip Bolts
21 7号沉頭帶榫螺栓 [Table 2] (A307, F468, F593, SAE J 429) [美标]
ASME B 18.9 - 2012
7号沉頭帶榫螺栓 [Table 2] (A307, F468, F593, SAE J 429)
No.7 Head Plow Bolts (Round, Countersunk, Reverse Key) [Table 2] (A307, F468, F593, SAE J 429)
22 6号沉頭帶尖榫螺栓(修正頭) [Table 4]  (A307, F468, F593, SAE J 429) [美标]
ASME B 18.9 - 2012
6号沉頭帶尖榫螺栓(修正頭) [Table 4] (A307, F468, F593, SAE J 429)
No.6 repair head plow bolts (Countersunk,heavy key) [Table 4] (A307, F468, F593, SAE J 429)
